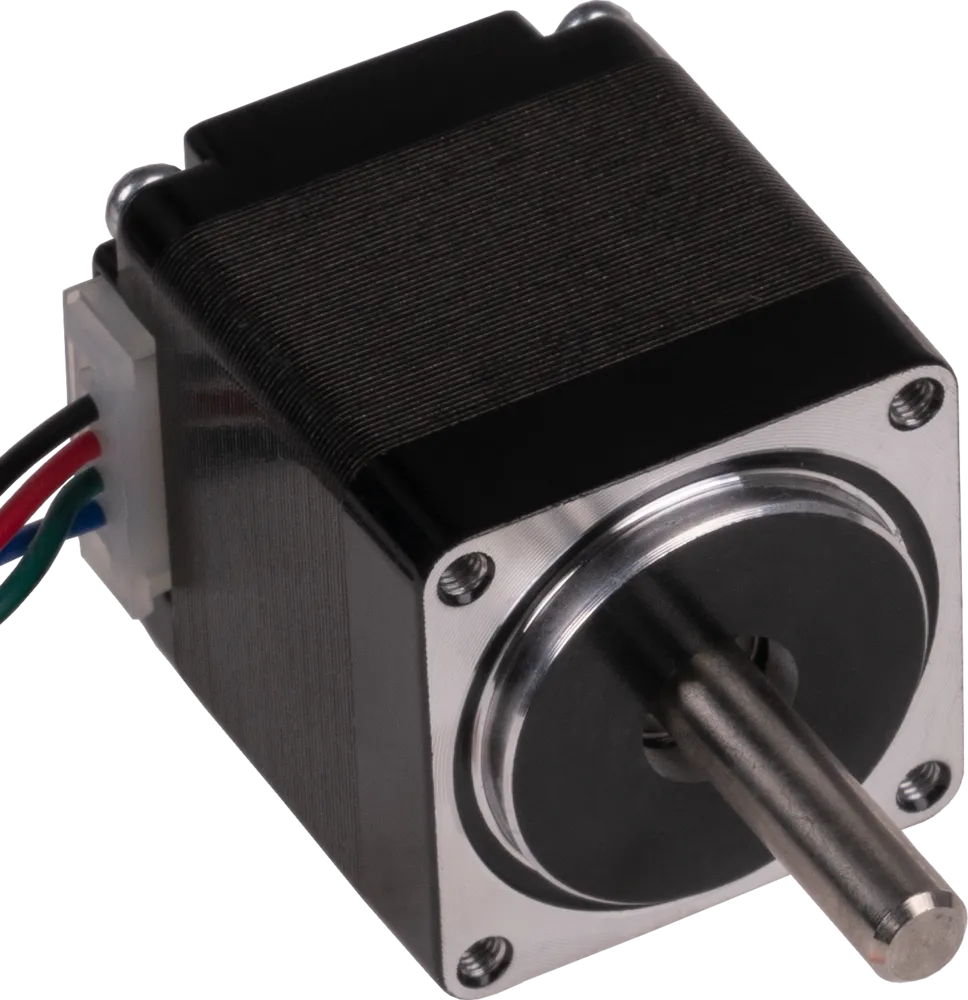

NEMA 11 stepper motor
Our NEMA 11 series are very small high torque stepper motors that can reach speeds of up to 3000 rpm.
These motors are often used in the model making and maker scene as well as in the industrial environment (Positioning of optics, dosing pumps, interlocks, etc.).
Shaft dimensions
5 x 18 mm
Connection
4 cables
Holding torque
55 mNm
Rated voltage
5.0 V
Rated current
0.42 A
Step angle
1.8 ° ±5 %
Number of Phases
2
Phase resistance
11.9
Phase inductivity
7.8 mH
Isolation resistance
100 M min. @500 V DC
Isolation class
B (130°C)
Rotational inertia
9 g·cm²
Detent torque
5 mNm
permitted operating temperature
-10 to 50 °C
Dimensions
28 x 29 x 32 mm
Weight
120 g
Items Shipped
NEMA 11 stepper motor, connection cable
EAN
4250236821719
Article No.
NEMA11-01
