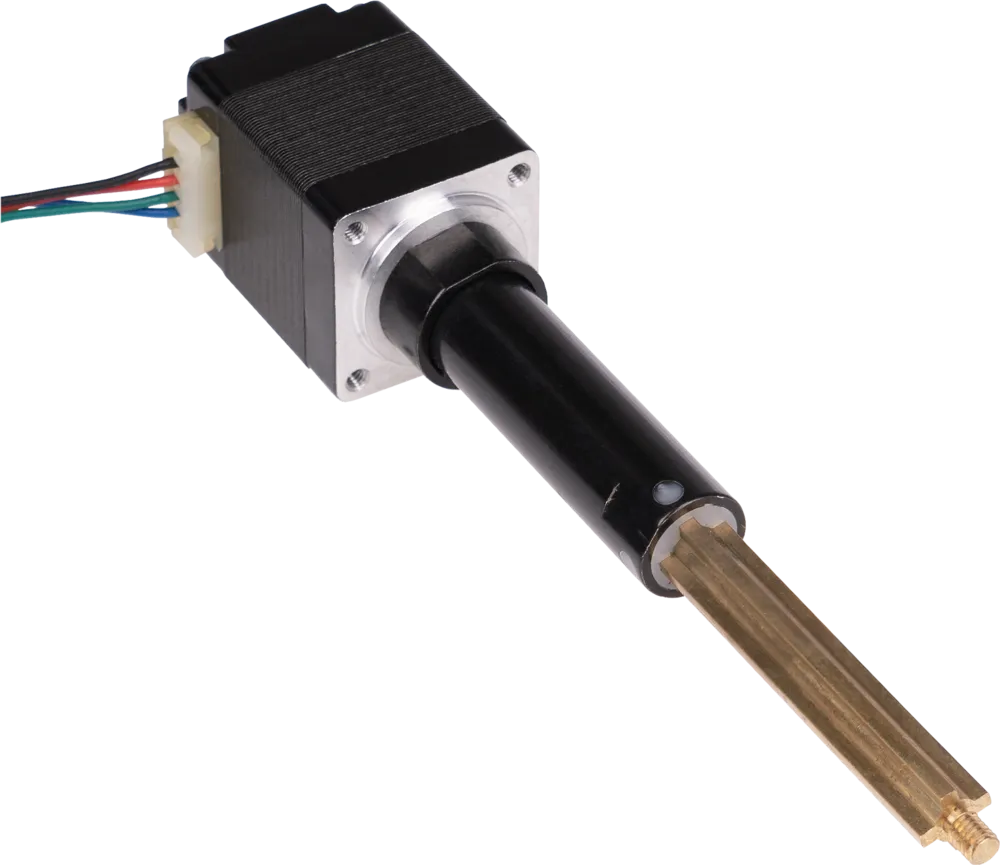

NEMA 8 Linear actuator stepper motor
This linear actuator is based on a NEMA 8 stepper motor. Due to the high torque for this size of motor, it is possible to achieve very high performance in linear motion with very little space.
Shaft dimensions
M3 x 4 mm
Connection
4 Cables
Travel per step
0.02 mm per step
Minimal thrust
0.5 kg at 600 pps
Rated voltage
5.28 V
Rated current
0.24 A
Step angle
1.8 ° ±5 %
Number of Phases
2
Phase resistance
22
Phase inductivity
6 mH
Isolation resistance
100 M min. @500 V DC
Isolation class
B (130°C)
Rotational inertia
2 g·cm²
permitted operating temperature
-10 to 50 °C
Dimensions
20 x 22 x 27.5 mm
Weight
100 g
Items Shipped
NEMA 8 linear actuator stepper motor, connection cable
EAN
4250236821696
Article No.
NEMA08-04LA
