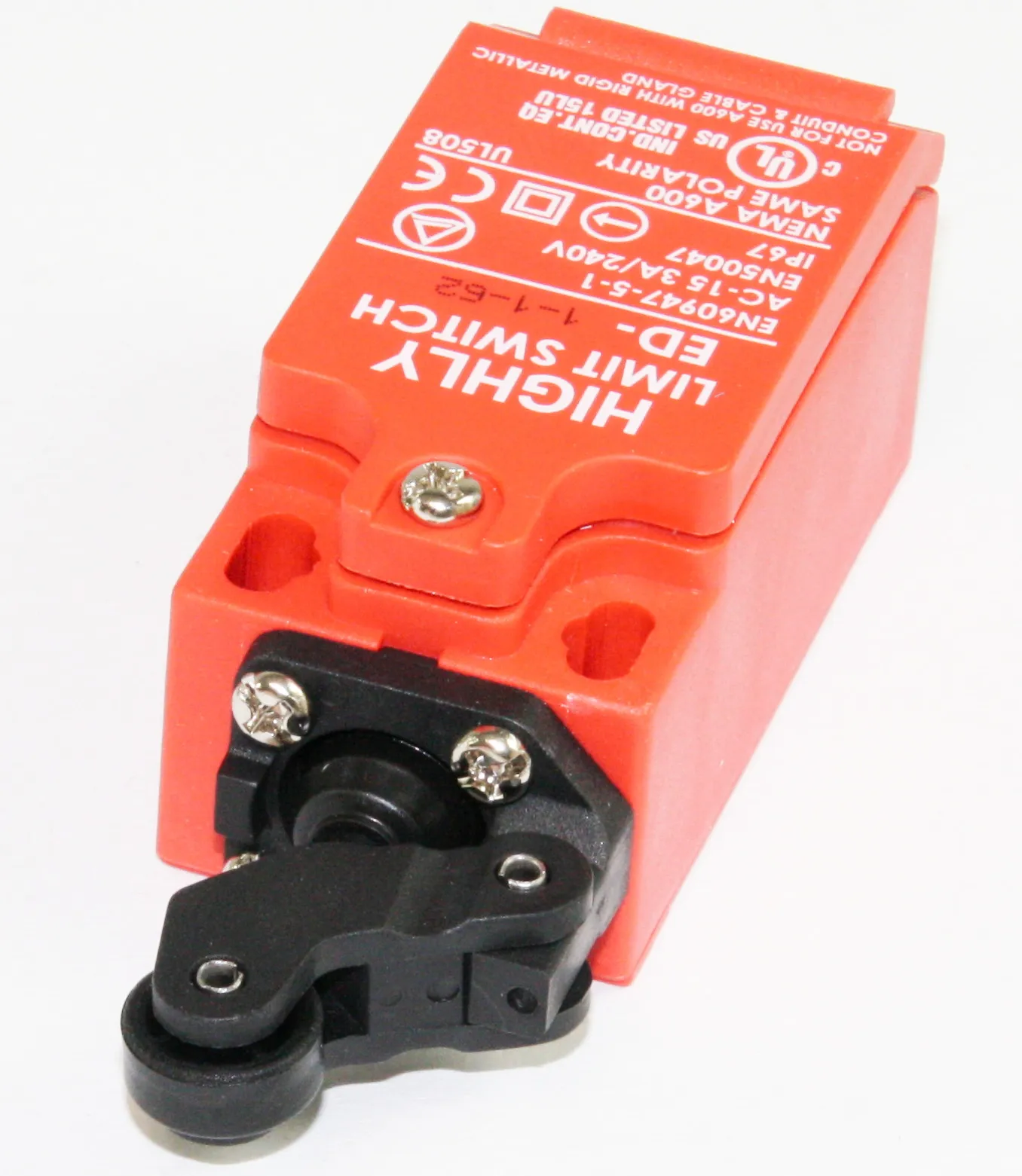

Endestopkontakt, med rulle IP67
Varenummer:
149-201
Varekode: ED-1-1-62
Vægt: 78 g
5 stk.
på lager
- Conforms to EN (TUV) standards corresponding to the CE marking
- Positive opening operation of NC (Normally Closed) contacts conforming to IEC /EN 60947-5-1 Double
- insulation makes ground terminal unnecessary (Bears marking)
- Wide standard operating temperature range: -25°C to 80°C
- Full range of actuator heads and levers suitable for safety applications
- Sealing up to IP 67
- Wide switch variations, (Snap action and slow action basic switches)
- International conduit size
|
HIGHLY
|
||
|
limit switch
|
||
|
lever R 20mm, plastic roller Ø12mm
|
||
|
NO + NC
|
||
|
5A
|
||
|
max. 240V AC, max. 240V DC
|
||
|
PG13,5
|
||
|
IP67
|
||
|
53.9x30.8x30.6mm
|
||
|
2
|
||
|
-25...80°C
|
||
|
plastic
|
||
|
1.5A / 240V AC
|
||
|
0.27A / 240V DC
|
||
|
1.6Hz
|
||
|
20...22mm
|
||
|
slow action contacts
|
