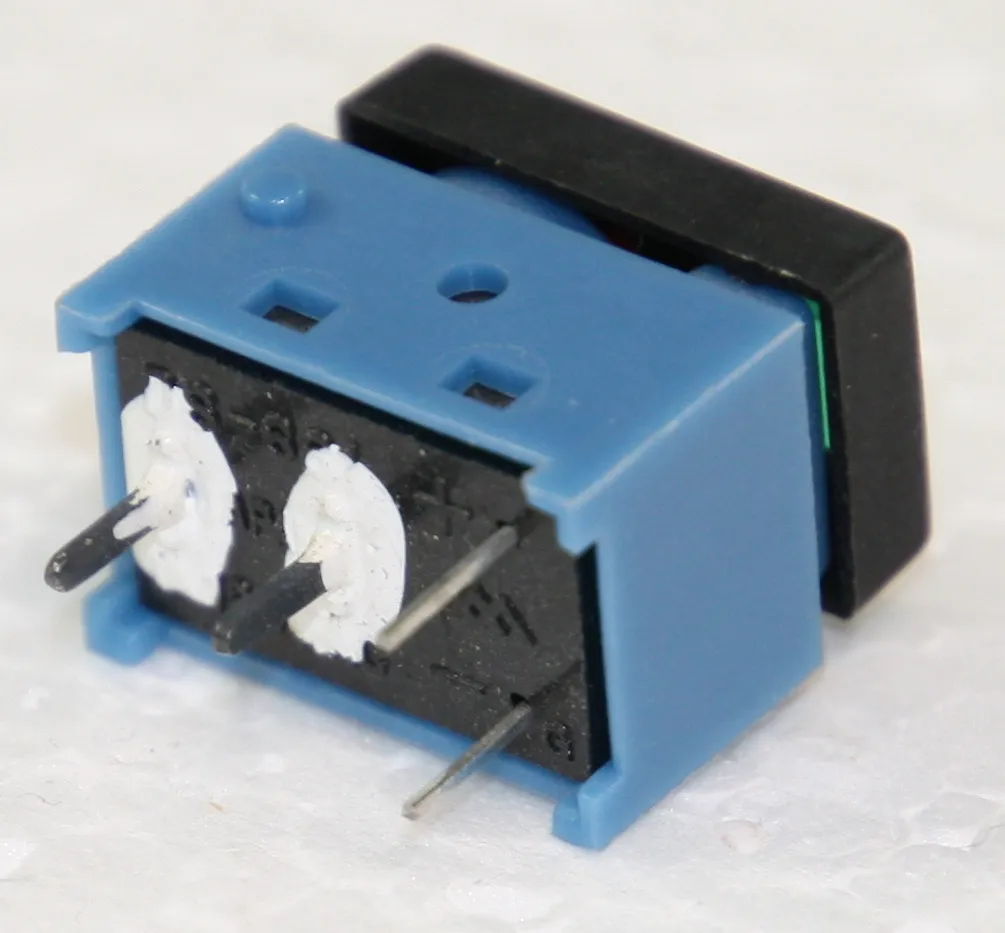

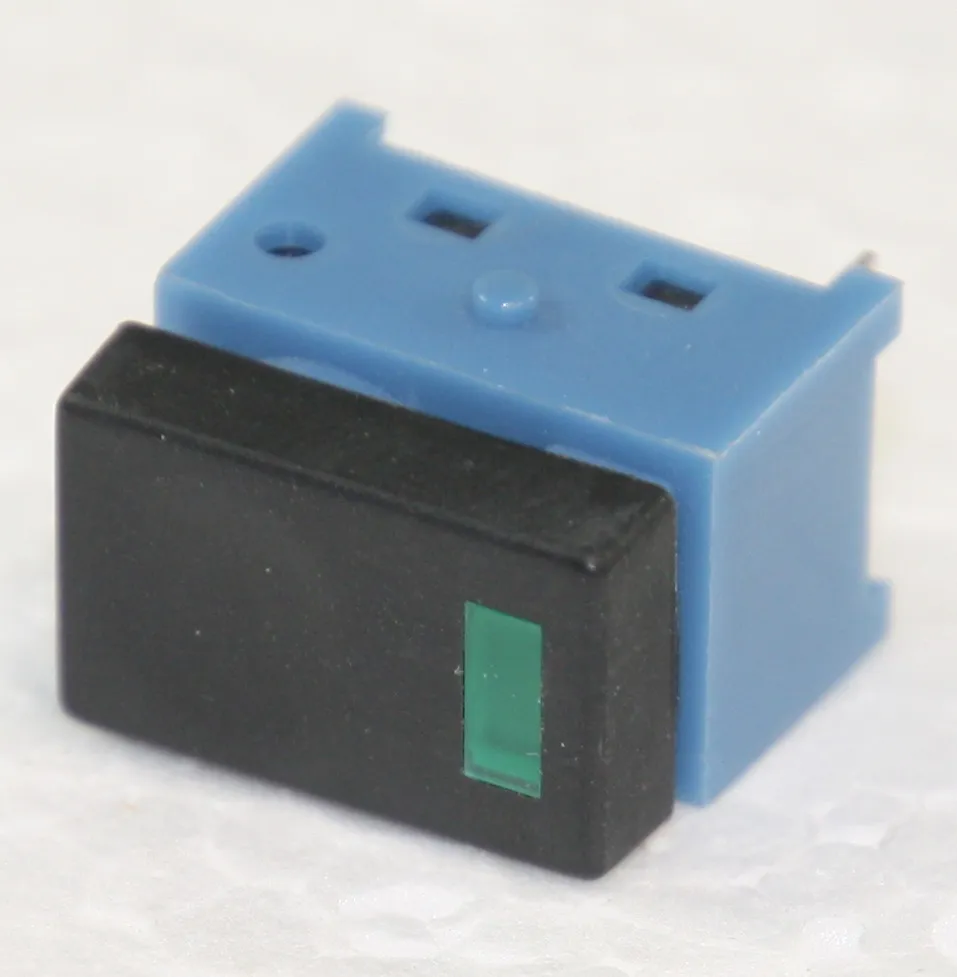

Tryktast 1-pol OFF/(ON) grøn LED Slutte NO MIYAMA

Name: Tryktast 1-pol OFF/(ON) grøn LED Slutte NO MIYAMA
SKU: 148702
Price: 30.00 DKK
Availability: InStock

Varenummer: 148-702

Varekode: DS-661-ROG

4 stk. på lager

Vis lignende produkter i kategorien "Firkantede"

Manufacturer	MIYAMA
Type of switch	ringetryk kontakt
Number of positions	2
Stable positions number	1-position
Contacts configuration	SPST-NO
AC contacts rating @R (at resistance load)	1A / 250VAC 3A/ 125VAC
Actuator colour	black
Illumination	LED green
Backlight colour	none
Leads	for soldering
Switching method (item in brackets is instantaneous)	OFF-(ON)
Operating temperature	-10...55°C
Button shape	square, prominent
Mounting	on panel ot PCB
Mounting hole diameter	(15x10mm.)
Body colour	blue
Max. contact resistance:	20mΩ
Manufacturer series	DS-661
Min. insulation resistance	100MΩ
Panel thickness	1.5...3mm
AC test voltage	1.5kV
