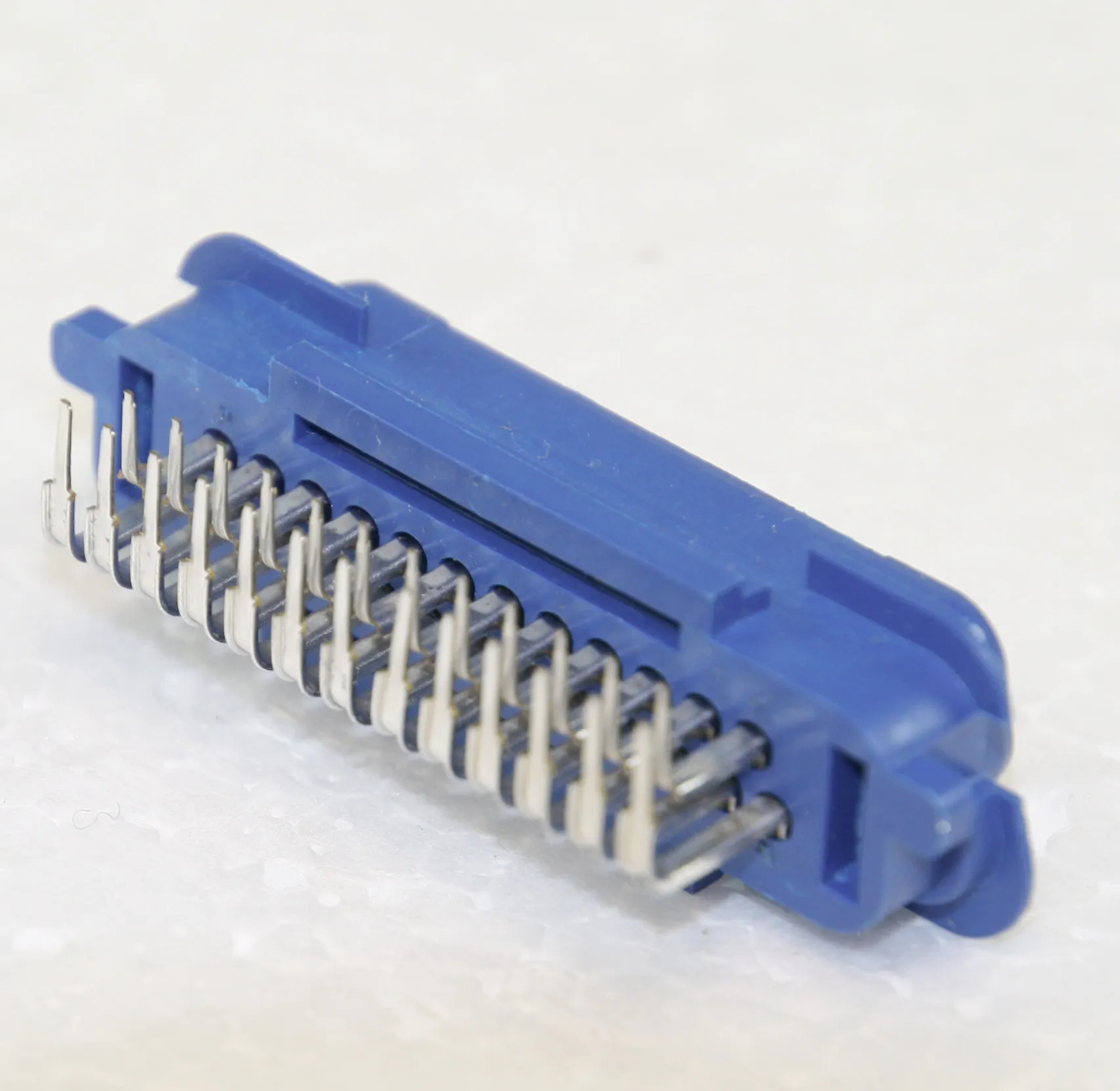

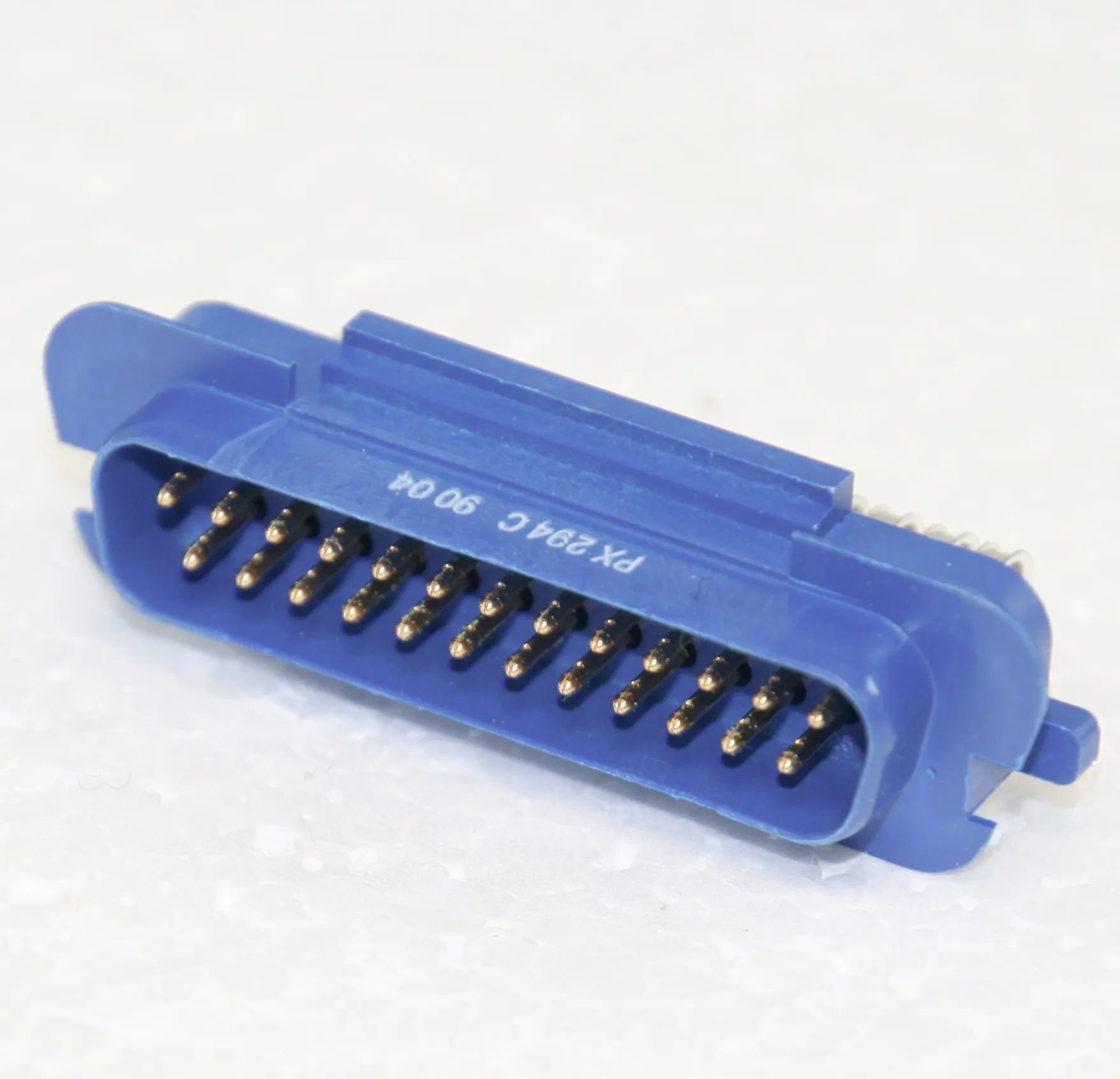

D-Sub-Plug 25-Pole Solder Pin 90° AMPHENOL
Varenummer:
148-674
Varekode: 17SD-PX294C
Produktet udgår - Sælges så længe lager haves!
83 stk.
på lager
- PLUG, D, PCB, R/A, 25WAY
- Connector Type: D Sub
- No. of Contacts: 25
- D Sub Shell Size: DB
- Connector Body Material: Plastic
- Gender: Plug
- Contact Termination: Through Hole Right Angle
- No. of Mating Cycles: 250
- SVHC: No SVHC (19-Dec-2011)
- Body Plating: Tin
- Case Material: Glass filled thermoplastic resin
- Connector Shell Size: D25
- Connector Type: D Sub
- Contact Material: Copper Alloy
- Contact Plating: Gold
- DC Current Max: 6.5A
- Material: Steel
- No. of Poles: 25
- No. of Ways: 25
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Termination Method: PCB
- Working Voltage: 250V
