Luftkvalitetssensor

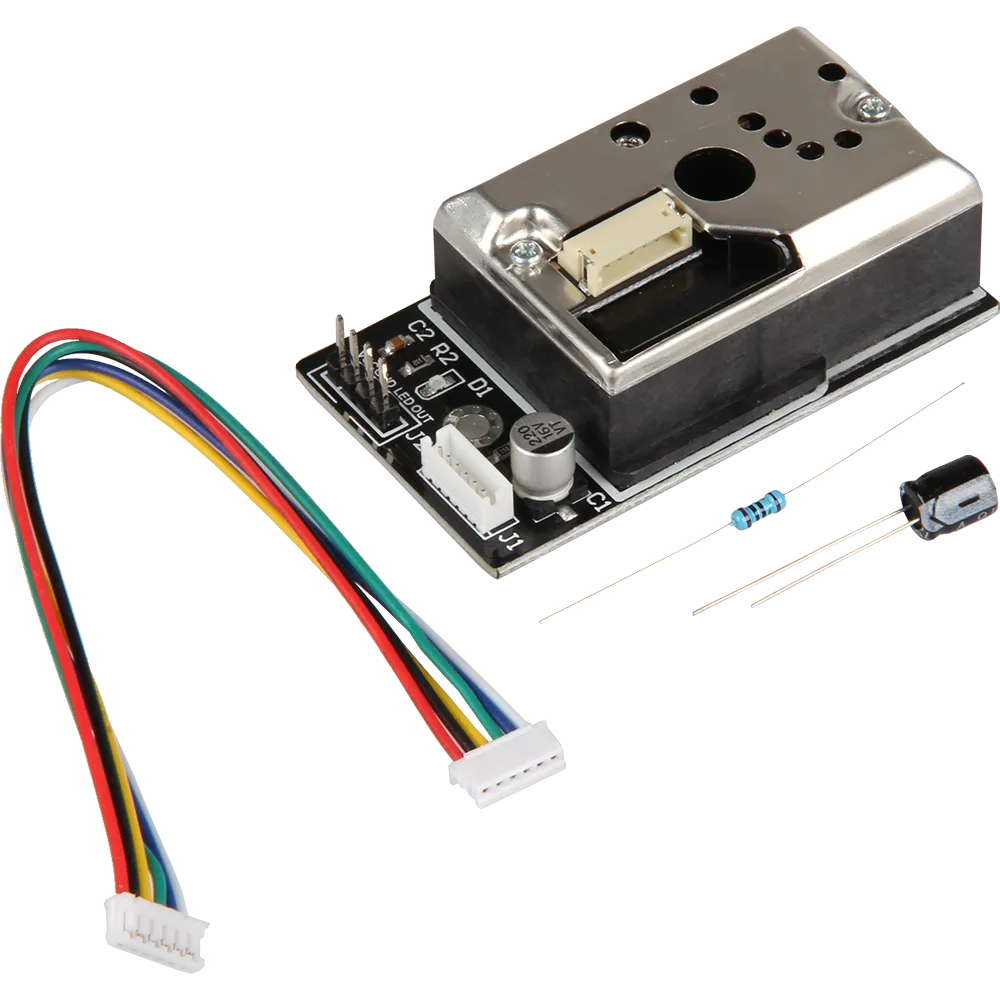

The GP2Y1014AU is an optical sensor for the detection of dust particles.
The light reflected by the dust is detected by an integrated infrared diode and a phototransistor and can thus be determined in an analog
value.
Interface
Analog
Operating Voltage
5 - 7 V
Operating temperature
-10 - 65°C
Storage temperature
-20 - 80°C
Max. current consumption
20 mA
Ø Current consumption
11 mA
Min. particle detection
0.8 micron
Sensitivity
0.5V / 0.1mg / m3
Dimensions
46 x 33 x 18 mm
Weight
15 g
Items Shipped
GP2Y1014AU Sensor, 6-Pin cable, 150 Ω resistor, 220 uF capacitor
EAN
4250236817996
Article No.
SEN-GP2Y1014AU
