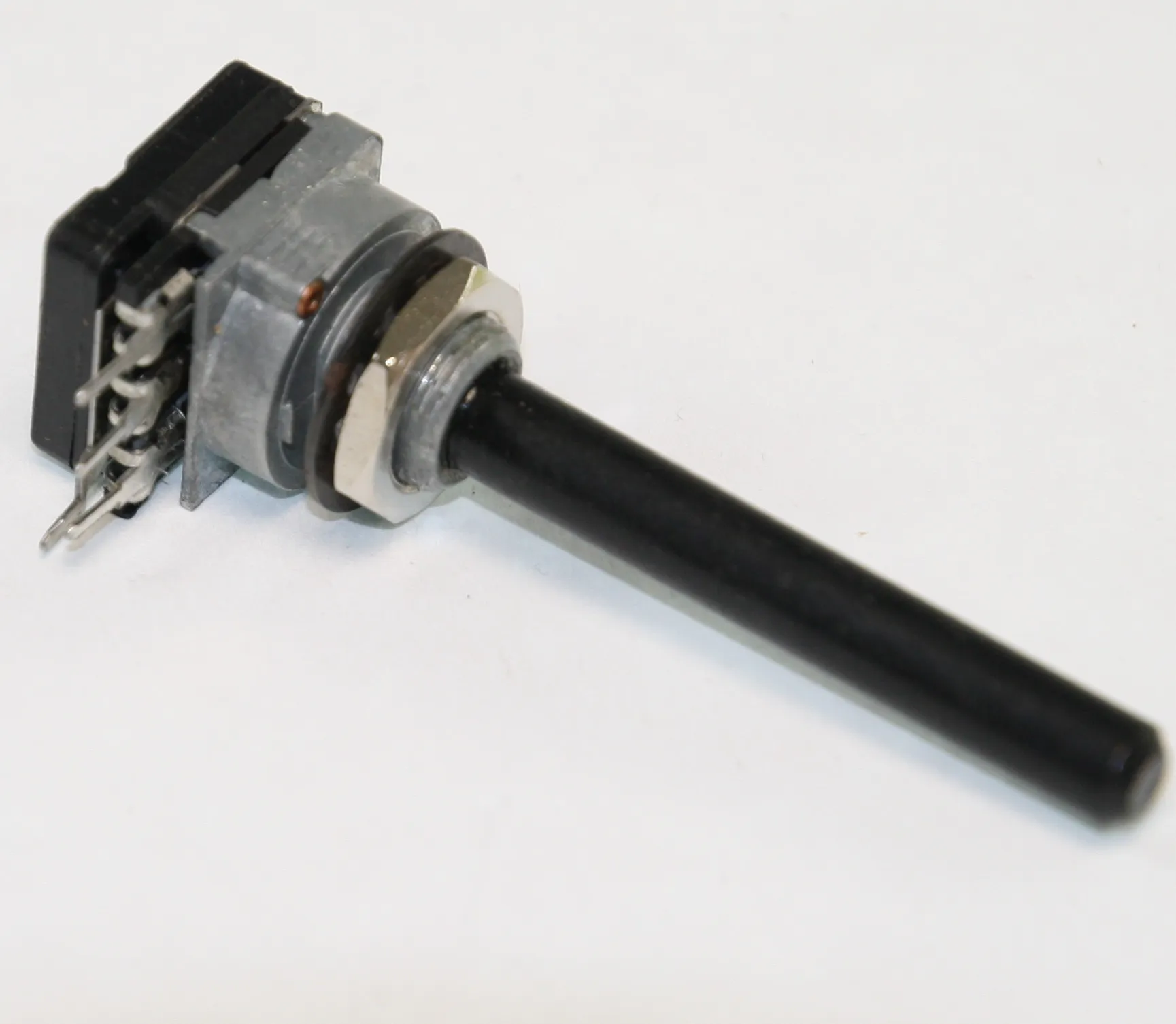

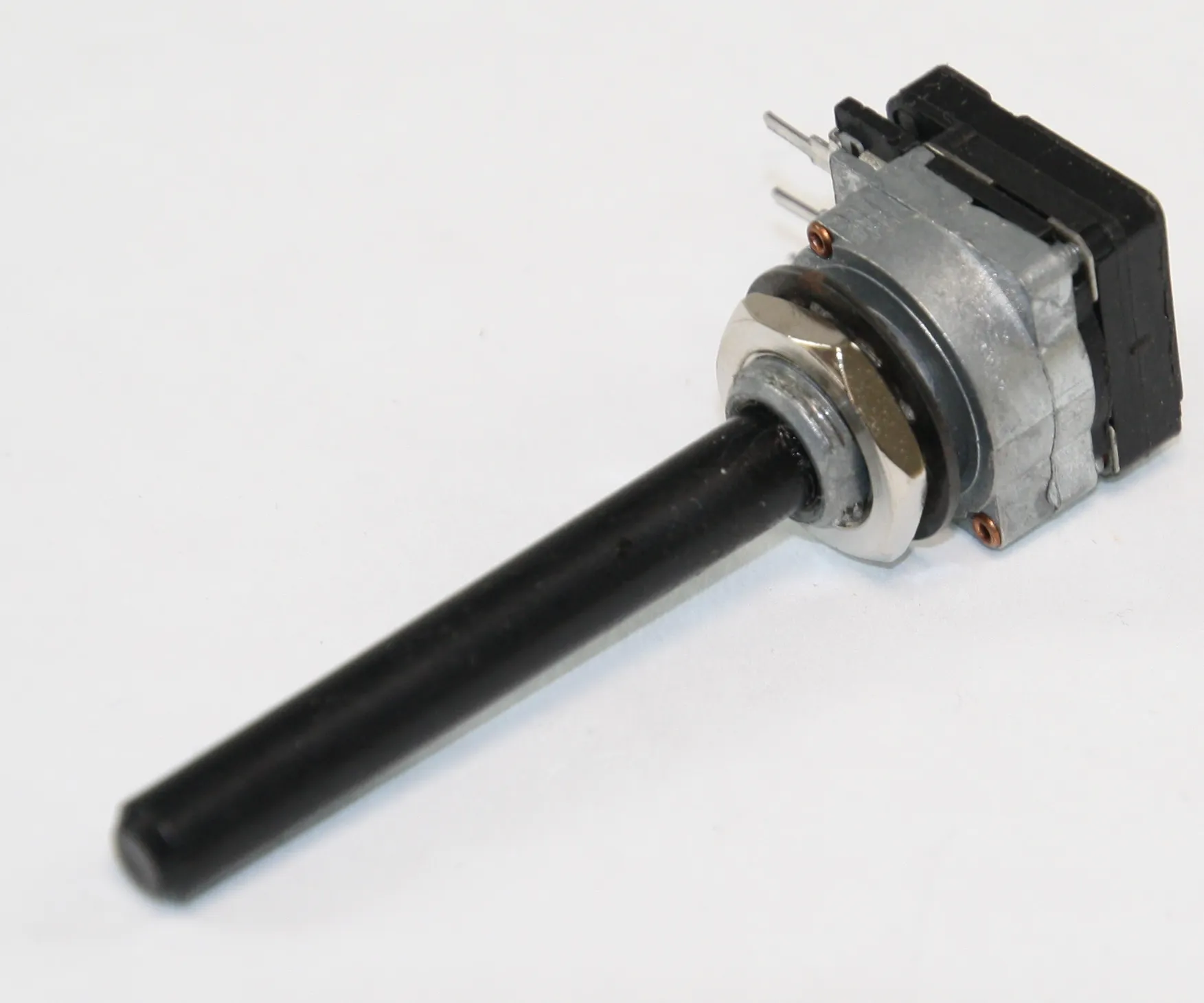

Potentiometer 16/6 Mono Lin 220R 41click
Varenummer:
148-586
Varekode: PC16MLE220
4 stk.
på lager
Gruppe: C3120
PIHER Carbon Potentiometers
Series:
PC16ML
Linear (A)
Power: 0,25W
Shaft: Plastic, 6mm
Pitch: 5mm
Housing: 16mm
|
Technical Specifications |
 |
|||||||||||||||||||||||||
| Rated Power (TU = 40°C): | 0,25W | Operating Voltage, Max.: | 250V DC | Residual Resistance: | £1x10-3RN | Resistance Tolerance | 100W...1MW: | ±20% | >1MW: | ±30% | Rotation | Mechanical: | 300° ±5° | Electrical: | 280° ±20° | Torque: | 0,5...1,5Ncm | Stop Torque: | >40Ncm | Temperature Range: | -25...+70°C | ||||
|
|||||||||||||||||||||||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.piher.net/ |
|
