ESP32 Kamera

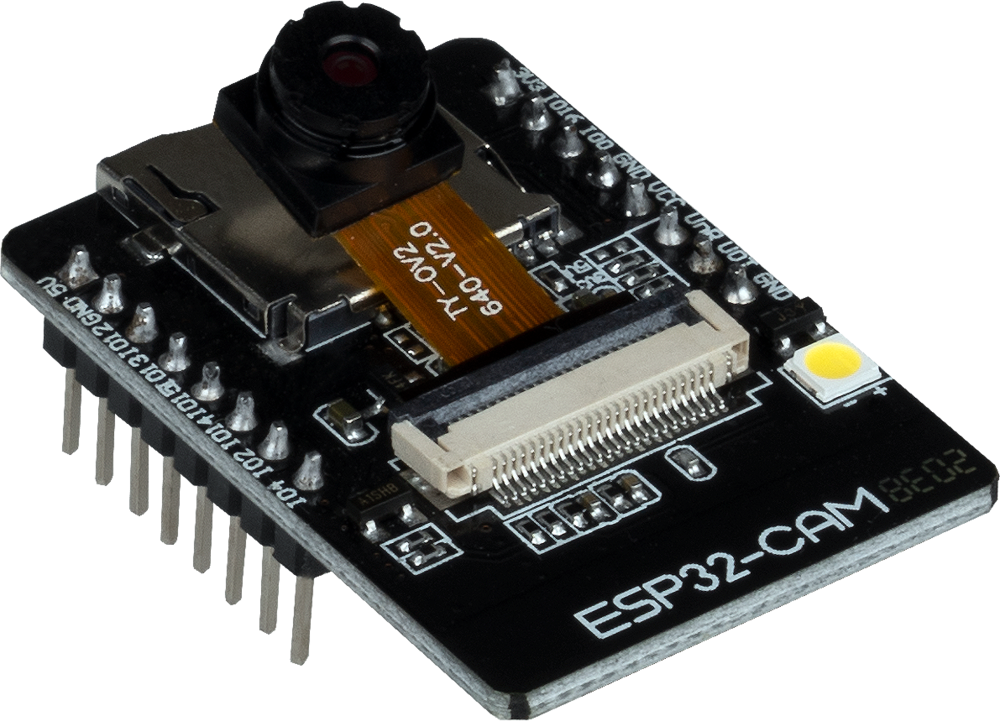

The ESP32-Cam is a compact camera module with low power consumption, multiple interfaces ( SPI / I²C / UART / PWM ) and is therefore suitable for many IoT applications and home projects ( e.g. video surveillance, QR identification and much more ). It is based on the popular ESP32, has a 2 megapixel camera with integrated LED flash and an SD card slot ( up to 4GB memory ), allowing images to be saved directly to the memory card.
Thanks to the BT radio and Wifi interface, the ESP32 camera module can communicate wirelessly, so it can be integrated into your own network (Internet access) and the images can be saved on a web server.
- Camera: 2MP OV2640
- Photo formats: JPEG, BMP, Grayscale
- Processor: Dual Core-ESP32 160 MHz
- Bright Flash-LED, integrated antenna
- Interfaces: UART, SPI, I2C, PWM, Wi-Fi, BT-wireless connection
- SD-Card slot: Up to 4 GB
- SPI Flash: 32 Mbit
- RAM: 52KB SRAM + 4MB PSRAM
- Supply voltage: 5 V
- Operating temperature: -20°C ~ 85°C
- UART standard Baudrate: 115200 bps
Power consumption: 6mA in deep sleep; 180 mA without flash; 310 mA with flash at max. brightness
Security: WPA, WPA2, WPA2-Enterprise, WPS
Dimensions: 27 x 40,5 x 4,5 mm
Items Shipped: Camera module, camera
EAN: 4250236818016
SBC-ESP32-Cam
