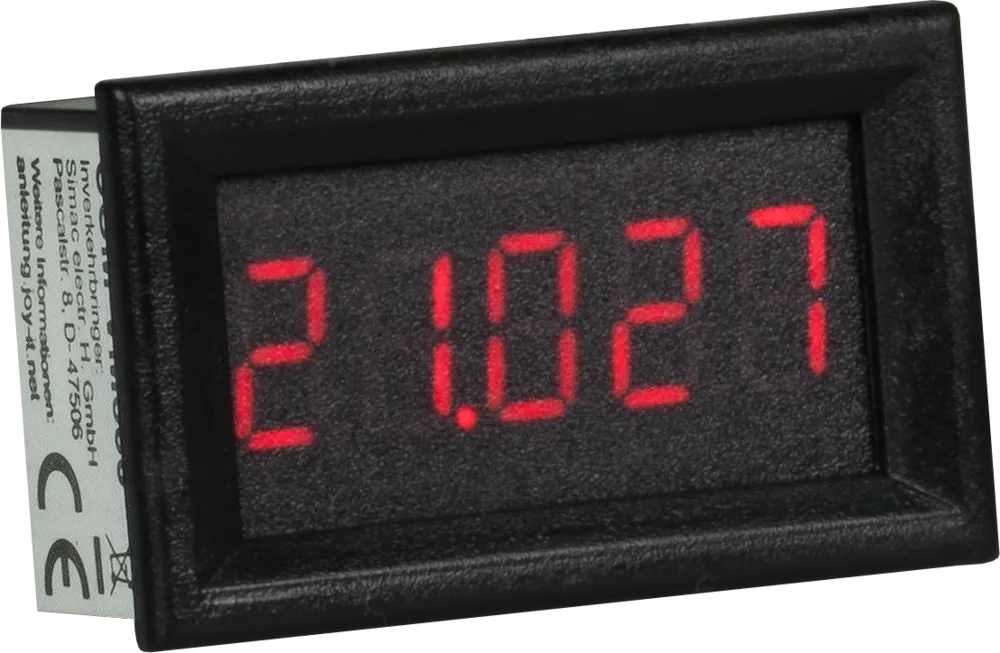

VM533 digital voltmeter
This digital voltmeter VM533 is able to measure voltages up to 33 V precisely and displays it on an integrated 0.36"- 5 digit segment display.
The running of the voltmeter is made possible directly within the measuring voltage. This makes the device to an absolute allrounder.
Operating voltage
3,5 - 30V (DC) | Operation via measuring voltage possible
Power consumption
ca. 8mA
Measuring range
0 - 33V DC
Measuring accuracy
±0,3%
Operating temperature
-10 - 65°C
Refresh rate
200 ms
Display mode
5 digits Segment display
Display size
0,36“
Display color
Red
Cable assignment
Red: supply voltage (+); black: ground (-); yellow: measuring voltage
Cable length
14cm
Dimensions
48 x 29 x 22 mm
Weight
16 g
Items Shipped
VM533
EAN
4250236817880
Article No.
COM-VM533
