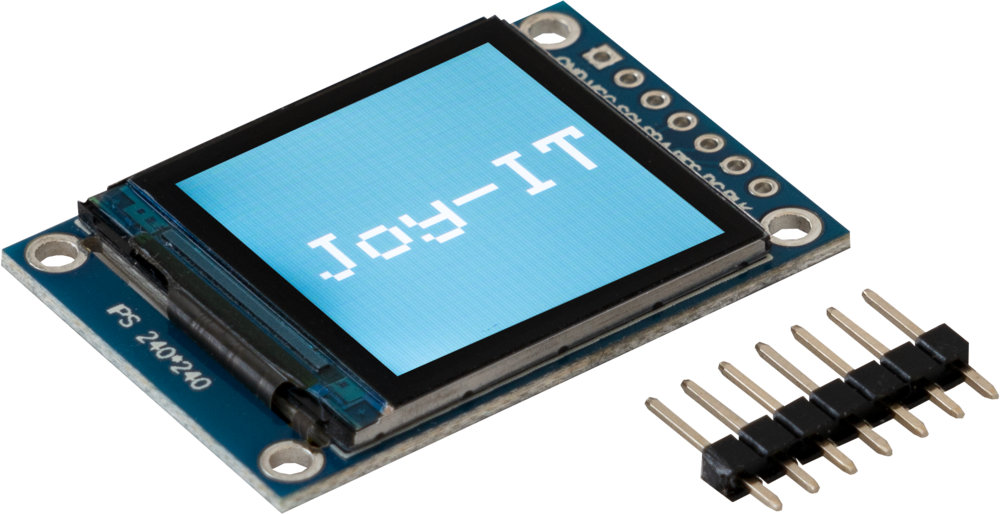

1.3-Inch HD IPS TFT LCD

This IPS TFT display is controlled via SPI. This makes it suitable for use as an output device for microcontrollers (e.g. NodeMCU) and single-board computers (e.g. Raspberry Pi). By using a high-resolution IPS panel with a pixel density of over 260 PPI, content can be displayed in high-resolution on the compact display.

Type

Full color IPS TFT-LCD

Resolution

240 x 240 Pixel

Control chip

ST7789VW

Supply voltage

3.3 V

Supply current

8 - 10 mA

Logic level voltage

3.3 V

Brightness

300 - 350 cd/m²

Contrast

640 - 800 : 1

Response time

30 - 35 ms

Operation temperature

- 20 °C - 70 °C

Dimensions

30 x 27 x 10 mm

Items Shipped

SBC-LCD01

EAN

4250236820330

Article No.

SBC-LCD01
