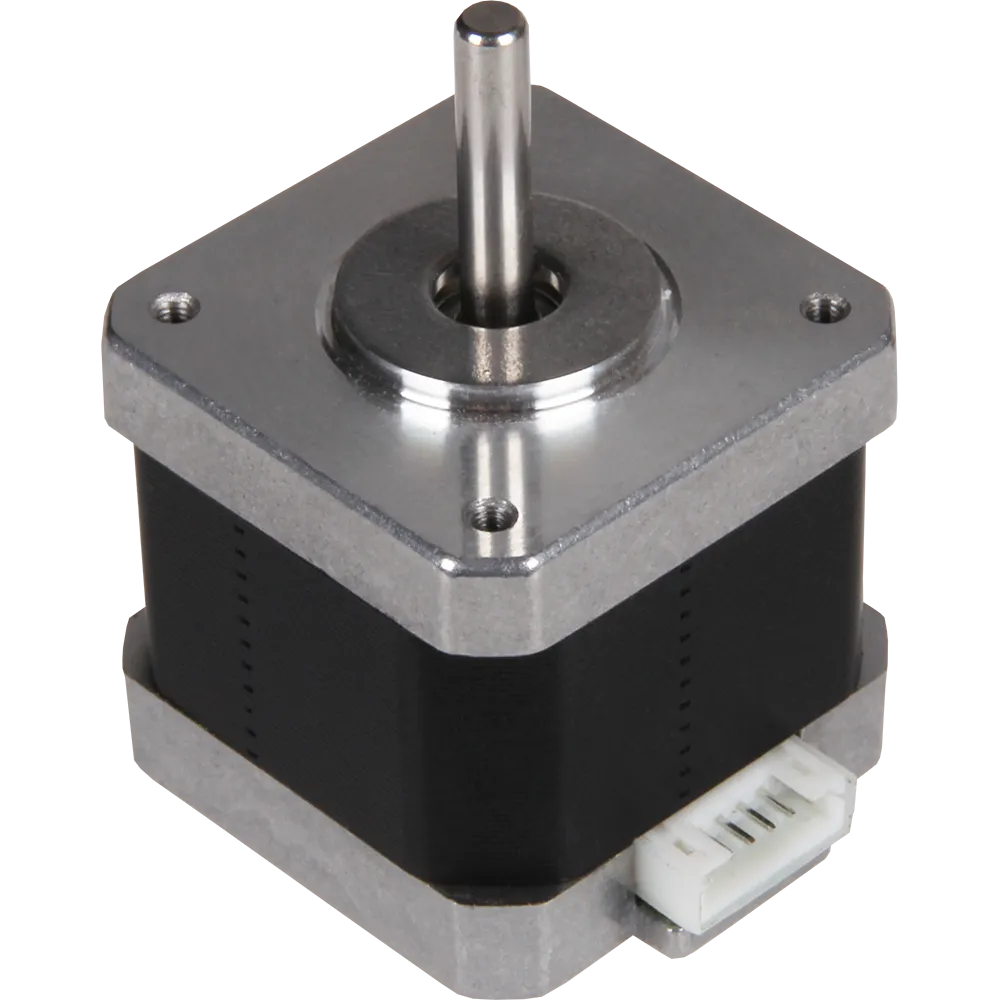

NEMA 17 Stepmotorer
This stepper motor can be optimally used for tasks in the areas of Automation, CNC (f. e. engraving lasers, 3D printers, milling machines, etc.), or robotic. As a bipolar stepper motor with 2 phases, it turns 1.8° per step and ensures steady movement and optimum holding torque of 0.45 Nm.
Specification
42SHD0217-24B
Shaft diameter
Ø 4.5 x 22 mm (single shaft)
Connection
6-pole connector (JST), 4 pins used
Steps per revolution
200
Holding torque
0.45 Nm
Rated voltage
3.3 V
Rated current
1.5 A
Step angle
1.8°
Amount of Phases
2
Phase resistance
2.2 Ω
Phase inductivity
5 mH
Isolation resistance
Min. 100 MΩ at 500 V DC
Isolation class
B (130°)
Rotational inertia
57 g·cm²
Detent torque
0,015 Nm
Operating temperature
-10 - 50 °C
Dimensions
42 x 42 x 42 mm
Weight
0,3 kg
Items Shipped
NEMA 17-04 stepper motor
EAN
4250236818771
Article No.
NEMA17-04
