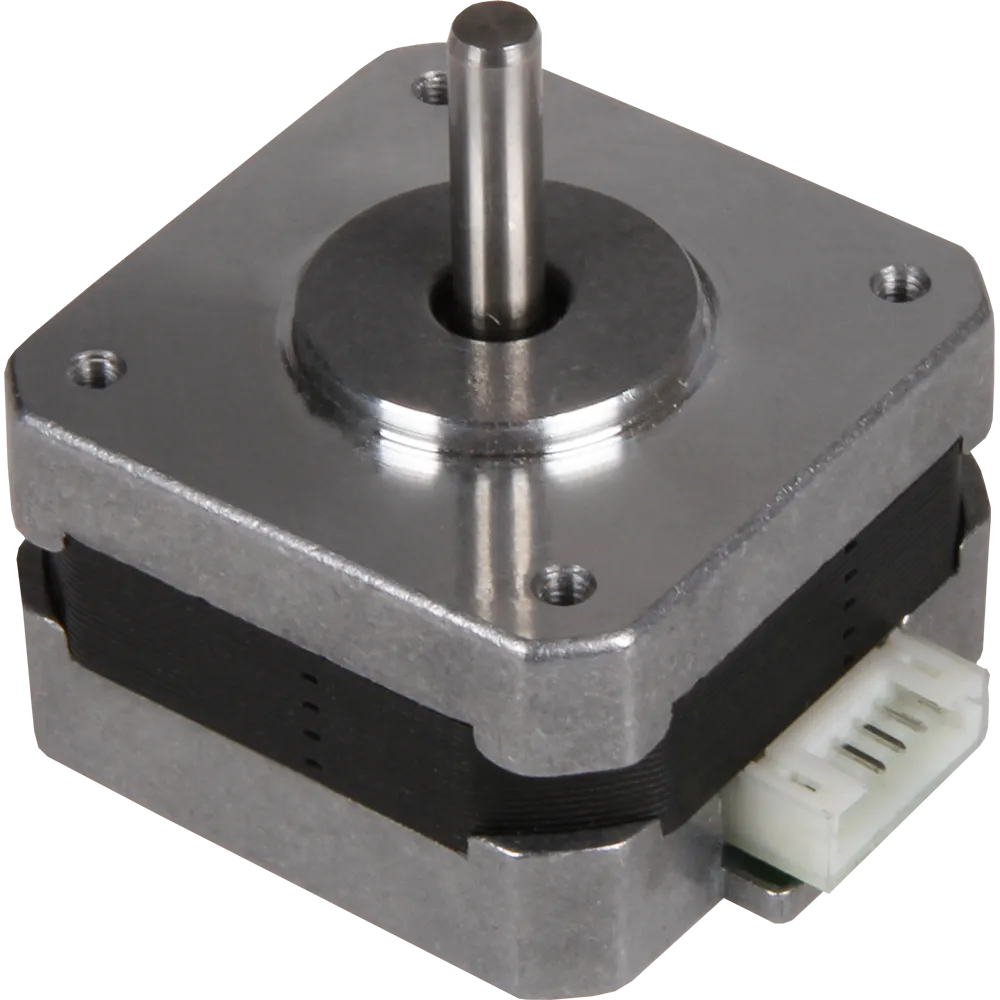

NEMA 17 Stepmotorer
This stepper motor can be optimally used for tasks in the areas of automation, CNC (f. e. engraving lasers, 3D printers, milling machines, etc.), or robotic. The compact design and the low weight predestine this stepper motor for projects with low building space / weight capacity.
Specification
42SHD0513-20
Shaft dimensions
Ø 5 x 18 mm
Connection
6-pole socket (JST), 4 Pins used
Steps per revolution
200
Holding torque
0.2 Nm
Rated voltage
5 V
Rated current
1.2 A
Step angle
1.8°
Amount of Phases
2
Phase resistance
4.2 Ω
Phase inductivity
5.6 mH
Isolation resistance
Min. 100 MΩ at 500 V DC
Isolation class
B (130°)
Rotational inertia
38 g·cm²
Detent torque
0,012 Nm
Operating temperature
-10 - 50 °C
Dimensions
42 x 42 x 27mm
Weight
150 g
Items Shipped
NEMA 17-03 stepper motor
EAN
4250236818764
Article No.
NEMA17-03
