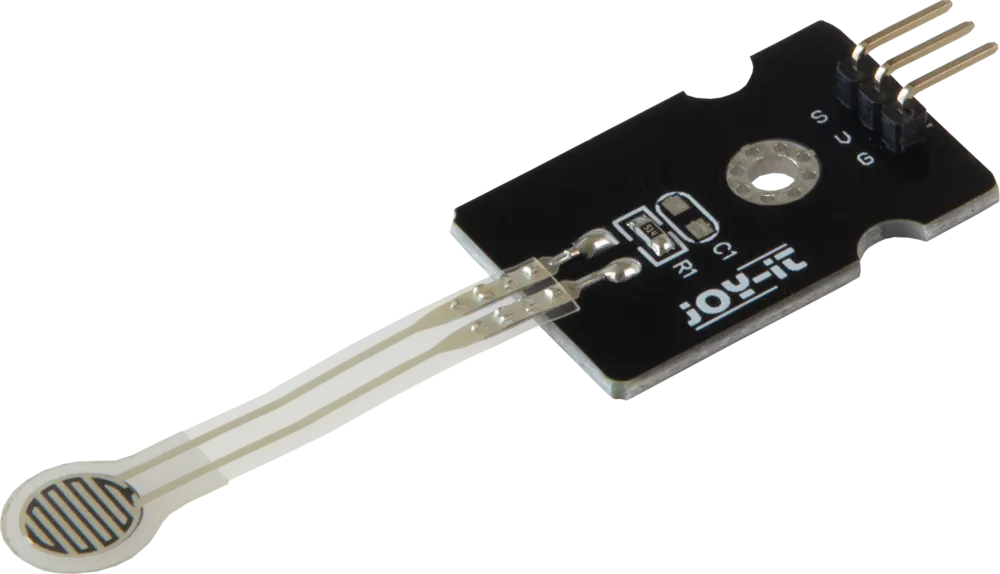

Tryksensor modul 0-10kg
This pressure sensor works by means of analog resistance detection, when external pressure is applied to the sensor, the resistance and thus the voltage of the analog signal changes. The sensor is highly sensitive, flexible and the sensor strip is waterproof.
Measurement range
0 - 10 kilograms
Thickness of thin-film strip
Compatible with
Raspberry Pi( with AD-converter ), Arduino, et
Special features
High sensitivity and flexibility, water-proof sensor strip, no electrostatic discharge or magnetic interference
Output of measurement
Analog voltage value
Response point of weight
200 g - 250 g
Accuracy
± 2,5%
Response time
Recovery time
Pins:
+: Power Supply 3.3-5V I: Ground S: Analog Output
Operating temperature
-20 - 60 ° C
Durability
> 100'000 measurements
Dimensions
75 x 20 x 9 mm
Items Shipped
SEN-Pressure10
EAN
4250236820019
Article No.
SEN-Pressure10
