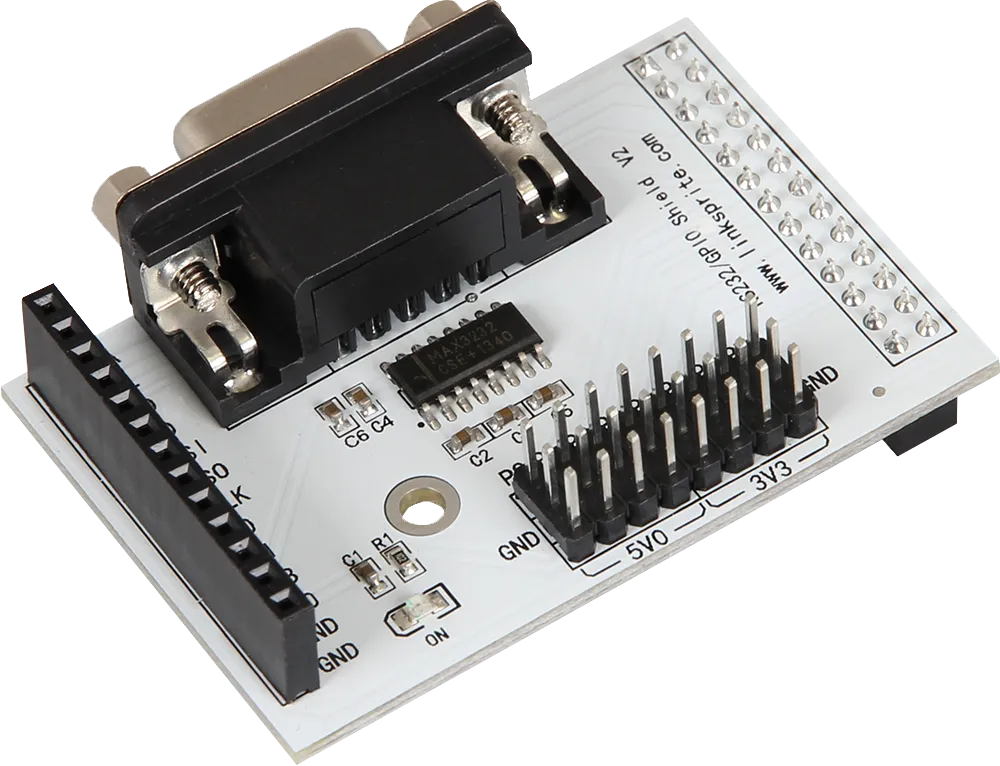

RS232 Breakout Kit til Raspberry Pi
Expand your Raspberry / Raspberry PLUS easily with a serial RS232 interface.
Model
RS-232 Breakout Kit
Used Controller
Maxim MAX3232CWE
Function
Translates the UART signals from GPIO14(TXD) and GPIO15 (RXD) to RS232 level and outputs them to the DB9 connector on pin 2 (TXD) and pin 3 (RXD)
Pin-Assignment P0
GPIO17
Pin-Assignment P1
GPIO18
Pin-Assignment P2
GPIO27
Pin-Assignment P3
GPIO22
Pin-Assignment P4
GPIO23
Pin-Assignment P5
GPIO24
Pin-Assignment P6
GPIO25
Pin-Assignment P7
GPIO4
Compatible to
Raspberry Pi [A, A+, B, B+, 2B, 3B, 3B+], Banana Pi, Orange Pi
Dimensions
35 x 55 x 25 mm
Weight
24 g
Items Shipped
RS232 Breakout Kit
EAN
4250236809410
Article No.
RB-RS232
