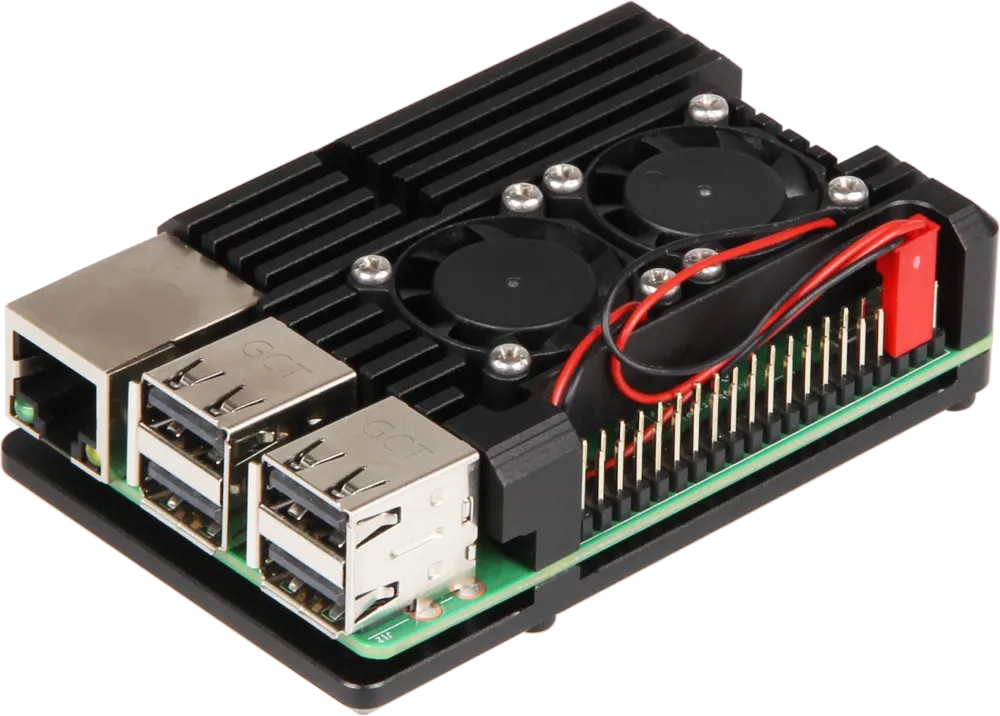

Armor Case "BLOCK ACTIVE til Raspberry Pi 3B, 3B+

The armor case "BLOCK ACTIVE" is the perfect partner when push comes to shove and when it gets really hot. The aluminum based case protects the Raspberry Pi perfectly from the top and the bottom against heat and impact. It is suitable for challaging envirnoments. It is built so that it does not have more space than the Raspberry Pi would need alone and that way it allows that the Raspberry Pi can be used in already existing projects. Through the additional dual active placement of ventilators the "BLOCK ACTIVE" gets its additional performance to cool by extrem loads.

Model

Armor Case "BLOCK ACTIVE“

Material

CNC Aluminum Alloy

Special features

Large heat sink and dual fan

Wiring

Fan 5V (Red) - Raspberry Pi 5V (Pin 4) | Fan GND (Black) - Raspberry Pi GND (Pin 6)

Fan diameter

24mm

Assembly

4 screws (included in the set) connect the case to the Raspberry Pi

Compatible to

Raspberry Pi 3B, 3B+

Dimension of topside

69 x 56 x 15,5 mm

Dimension of underside

87 x 56 x 7,5 mm

Weight

135 g

Items Shipped

Armor Case „BLOCK ACTIVE“, screws, heat conduction pads

EAN

4250236817958

Article No.

RB-ALUcase+07FAN
