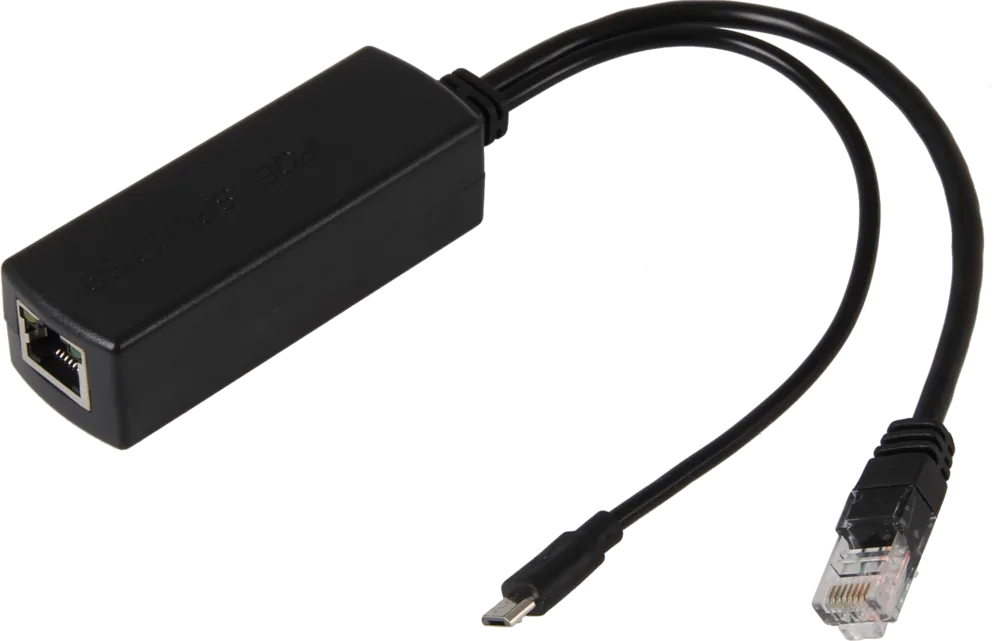

PoE splitter bl.a. til Raspberry Pi 3, 10/100 Mbps,micro USB 5V 2A
With this adapter is it possible to supply power via PoE-LAN to the Raspberry Pi (all models) and other singleboard-computer which are normally supplied via microUSB. Therefore, the device is connected via PoE-LAN cable (up to 100m cable length) with a PoE capable router / switch or a PoE injector.
Model
Power over Ethernet—mUSB Poweradapter
Ports
1x Micro USB power plug, 1x Rj45 output port
Input Voltage
36 - 57V (standard PoE voltage 48V, 52V)
Output Voltage
DC 5 V
Output Current
2 A
Transmission Distance
10 - 100 m
PoE Protocol
IEEE802.3af
Network Bandwidth
10/100 Mbps
Cable Length
205 mm
Operating Temperature
-50 - 75 °C
Dimensions
82 x 28 x 23 mm
Weight
40 g
Items Shipped
Power over Ethernet—mUSB Poweradapter
EAN
4250236817019
Article No.
SBC-PoE-Power
- v/2 – Kr. 139,00
- v/10 – Kr. 129,00
