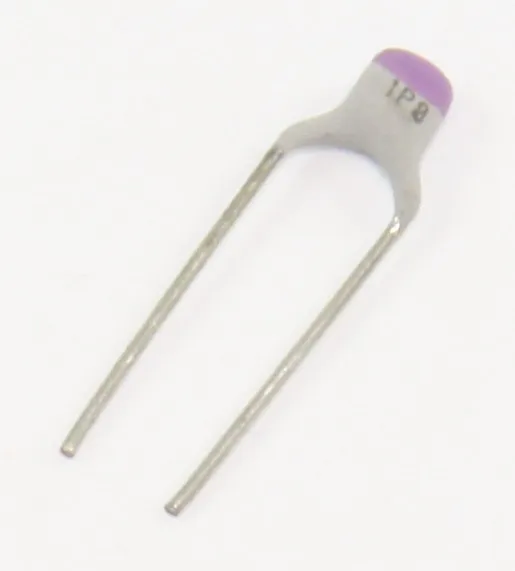

Cer Capacitor 1,8pF 500V P5,08 N750
| Materiale | N750 |
|---|---|
| Produkt | Kondensator |
| Kondensator-type | Keramisk |
| Spænding, max. | 500 V |
| Tolerance | ±2 % |
| Benafstand | 5.08 mm |
| Kapacitans | 1.8 pF |
Ceramic Plate Capacitor 1.8pF 100VDC 3.6x5mm Pitch=5,08mm
Capacitance value: 1,8pF
Capacitance tolerance: ± 0.25pF
Rated voltage: 500VDC
Dimension: b=3.6mm h=5mm
Pitch (RM): 5,08mm
Temperature range: -55°C to +85°C
Insulation resistance (RIS): 10G-Ohm
Temperature coefficient: +100ppm/°C
Marking for Capacitance:
Capacitance value is indicated on the body, e.g. p56 for 0.56pF, 82p for 82pF, n15 for 150pF
Colour code of temperature coefficient ppm/°C:
The temperature coefficient is indicated by a colour code in accordance with IEC and EIA recommendations.
black = 0 (NP0)
red/purple = +100 (P100)
orange = -150 (N150)
purple = -750 (N750)
orange/orange = -1500 (N1500)
- v/100 – Kr. 0,44
- v/1000 – Kr. 0,18
