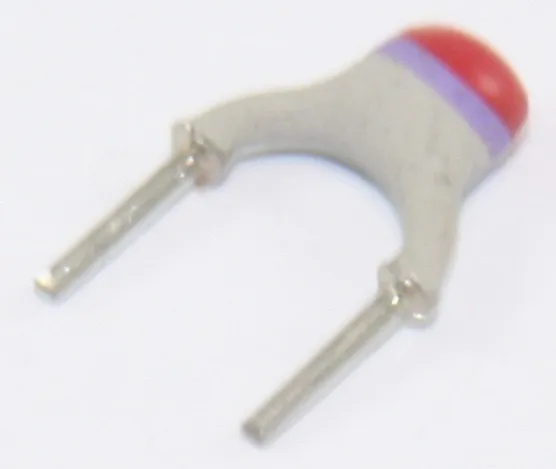

Cer Capacitor 1,5pF 100V P5,08 P100
| Materiale | P100 |
|---|---|
| Produkt | Kondensator |
| Kondensator-type | Keramisk |
| Tolerance | ±20 % |
| Spænding, max. | 100 V |
| Benafstand | 5.08 mm |
| Kapacitans | 1.5 pF |
Ceramic Plate Capacitor 1.5pF 100VDC 3.6x5mm Pitch=5.08mm
Capacitance value:
1,5pF
Capacitance tolerance: ±
0.25pF
Rated voltage: 100VDC
Dimension: b=3.6mm
h=5mm
Pitch (RM): 5,08mm
Temperature range: -55°C to
+85°C
Insulation resistance (RIS):
10G-Ohm
Temperature coefficient:
+100ppm/°C
Marking for
Capacitance:
Capacitance value is indicated on the body, e.g. p56 for 0.56pF,
82p for 82pF, n15 for 150pF
Colour code of
temperature coefficient ppm/°C:
The temperature coefficient is indicated by a colour code in
accordance with IEC and EIA recommendations.
black = 0 (NP0)
red/purple = +100 (P100)
orange = -150 (N150)
purple = -750 (N750)
orange/orange = -1500 (N1500)
- v/100 – Kr. 0,50
