Højttalerkontrolboks | 4-vejs | Terminalklemme | Sort
Varenummer:
146-296
Varekode: N-ASWI2604BK
Vægt: 708 g
1 stk.
på lager
Højttalerkontrolboks | 4-vejs | Terminalklemme | Sort
Denne højttalerkontrolboks kan skifte mellem fire par højttalere eller spille samtidigt fra dem alle fra en udgang.

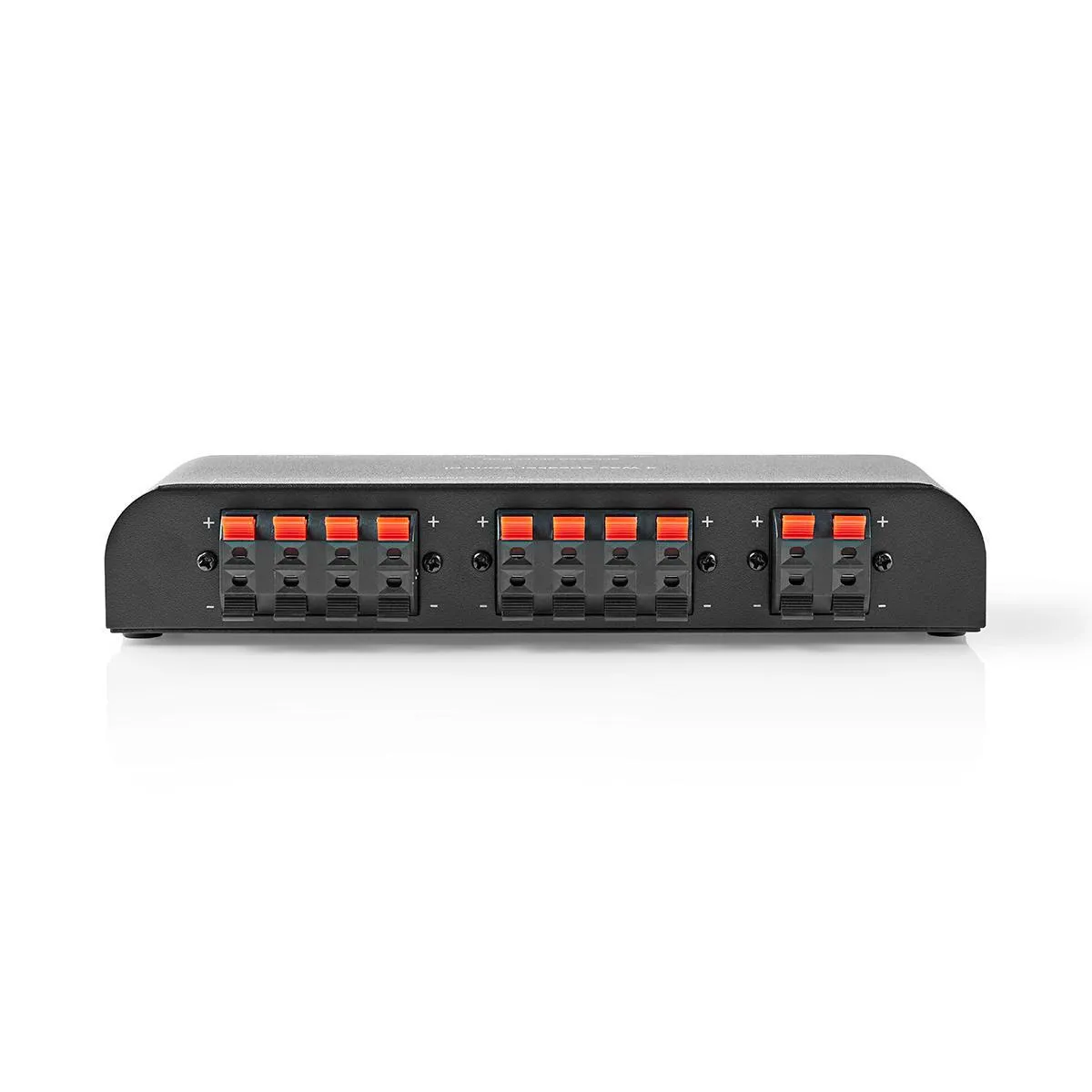

Fjederbelastede terminaler leverer en sikker kabeltilslutning og solid lydoverførsel.
Velegnet til højttalere med en impedansbelastning fra 4 Ohm til 16 Ohm.

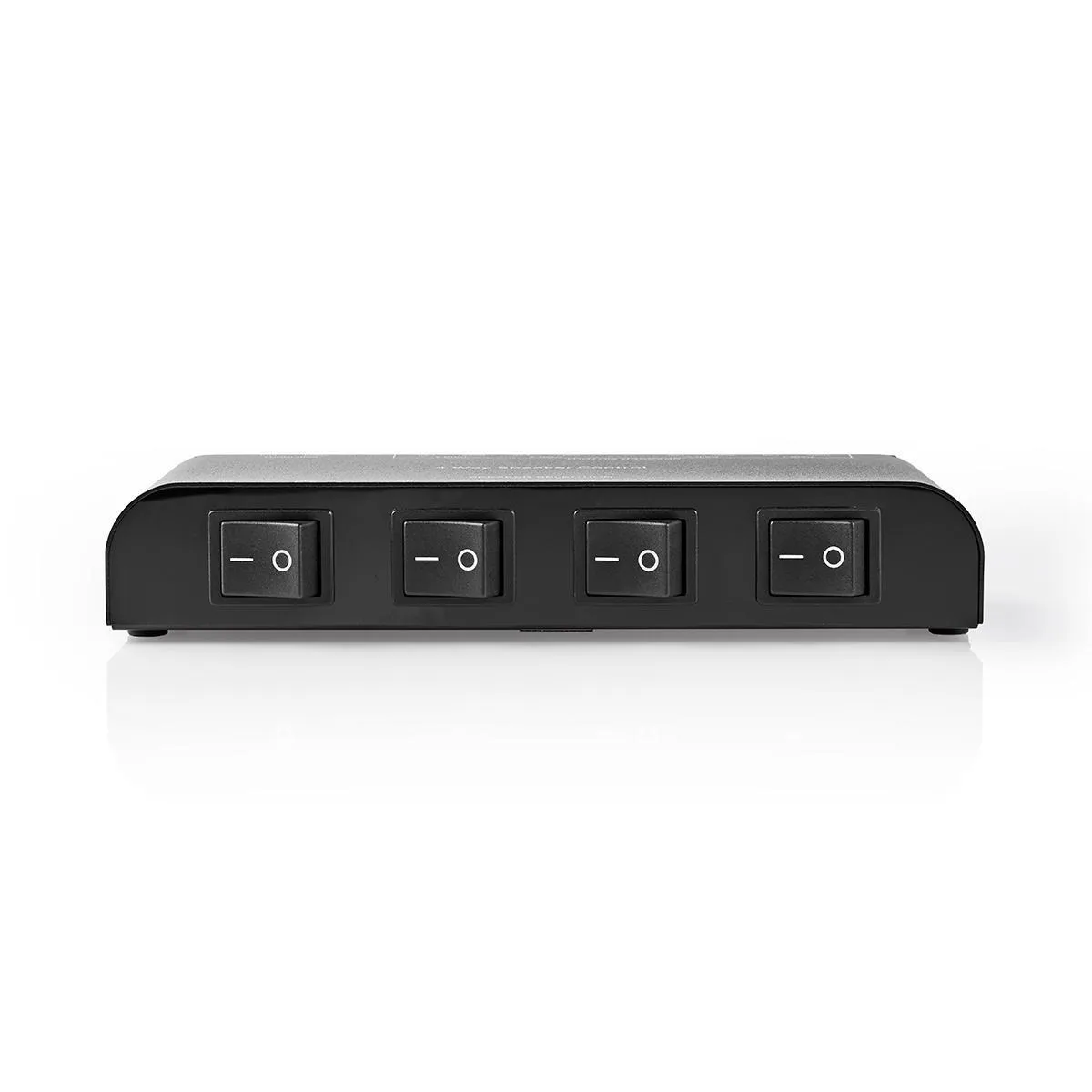

Elegant metaldesign med to separate vippekontakter til eliminering af interferens og nem betjening.
Preface
Thank you for purchasing the Nedis ASWI2604BK.
This document is the user manual and contains all the information for correct, efficient and safe use of the product.
This user manual is addressed to the end user. Read this information carefully before installing or using the product.
Always store this information with the product for use in the future.
Product description
The Nedis ASWI2604BK is a 4-way speaker switch box that allows the user to distribute the loudspeaker output of an audio amplifier to 4 pairs of speakers.
The 4-way speaker switch box is equipped with spring-loaded terminals for input and output connections.
Intended use
The product is exclusively intended for distributing the loudspeaker output of an audio amplifier to passive speakers with an impedance load rated at 4 to 16 Ohms.
Any modification of the product may have consequences for safety, warranty and proper functioning.
Specifications
|
Product
|
4-Way speaker switch box
|
|
Article number
|
ASWI2604BK
|
|
Dimensions (l x w x h)
|
225 x 80 x 35 mm
|
|
Operating temperature
|
-25 °C – 85 °C
|
|
Storage temperature
|
-25 °C – 85 °C
|
|
Humidity
|
20 – 75% (RH)
|
|
Maximum load
|
200 W RMS per channel
|
|
Speaker impedance
|
4 – 16 Ohms
|
|
Cable type
|
Loudspeaker cable
|
|
Maximum cable cross-section
|
2.5 mm2
|
|
Maximum cable length
|
50 m
|
Parts list
 |
