Loddestation SMD, varmluft med LCD-skærm
Loddestation, varmluft, SMD

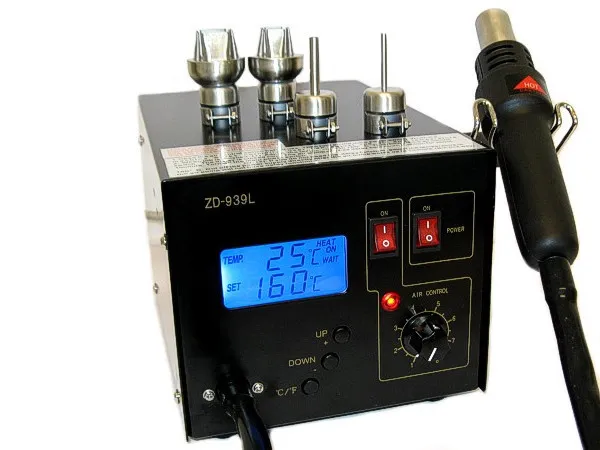

ZD-939L rework station
Version L with 2nd switch and cool down function
SMD rework station for easy insertion and soldering of SMD components on the hot air method.
• Soldering / desoldering (hot air): 150 to 500 ° C.
• High air delivery, adjustable flow rate
• LCD display for set and actual temperature
• Precise temperature setting in 1 ° C increments
• actual temperature sensor in the soldering
• Anti-static design
The wide adjustment range for temperature and "Air - Flow" also supports automatic cooling for the work of SMD components.
Blue backlit screen that displays:
• Temperature setpoint
• Actual temperature
• heating
Specifications:
• Power supply: 230 V/50 Hz
• Power consumption: 320 W
• Air pump: Diaphragm Pump
• air-handling capacity: max. 22 liters / minute
• Löt-/Entlöt-Temperatur: 150 to 500 ° C.
• Display: 2-line LCD display
including 4 interchangeable hot air nozzles (the nozzle port diameter 21.5 mm)
Attention: Remove the transport lock before use.
