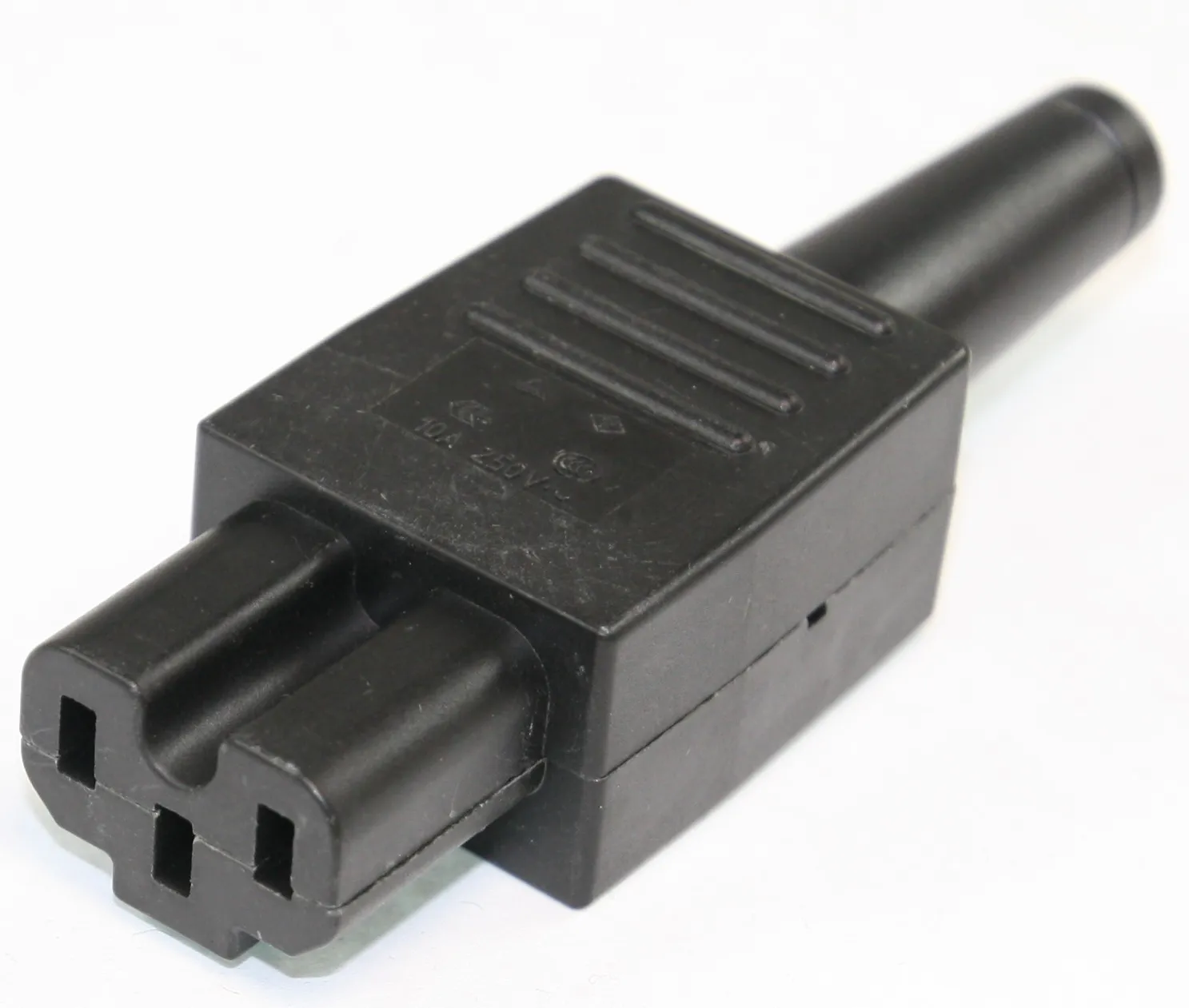

Series: 4771 IEC Connector C15A for very hot conditions 155°C, Rewireable, Straight

Varenummer: 145-954
Varekode: 4771.0110
Vægt: 45 g
9 stk. på lager
Bestil nu for afsendelse mandag d. 12/10
Vis lignende produkter i kategorien "For kabel, Hun C13/C15"

Description

  • Connector: Screwing cable terminal:
  • Pin temperature 155 °C, Protection class I, Cable
  • Cable guard included
  • Variants with gold plated contacts

Unique Selling Proposition

  • Wide range of approvals
  • Gold plated contacts for sensitive applications
  • Easy cable assembly

Ratings IEC

10 A / 250 VAC; 50 Hz



Ratings UL/CSA

15 A / 250 VAC; 60 Hz



Dielectric Strength

> 3 kVAC between L-N
> 1.5 kVAC between L/N-PE
(1 min/50 Hz)



Allowable Operation Temperature

-25 °C to 155 °C



IP-Protection

from front side IP20 acc. to IEC 60529



Protection against electric shock

Suitable for appliances with protection class I acc. to IEC 61140



Terminal

Screw clamps



Material: Housing

Phenolic, black

Inkl. moms
Kr. 99,00
  • v/10 – Kr. 75,00
