Sensor: touch; capacitive; Channels: 1; IC: TTP223; 2.4÷5.5VDC
Varenummer:
145-812
Varekode:
OKY3420
Vægt:
0 g
Lagerstatus:
Lager: 38 stk.

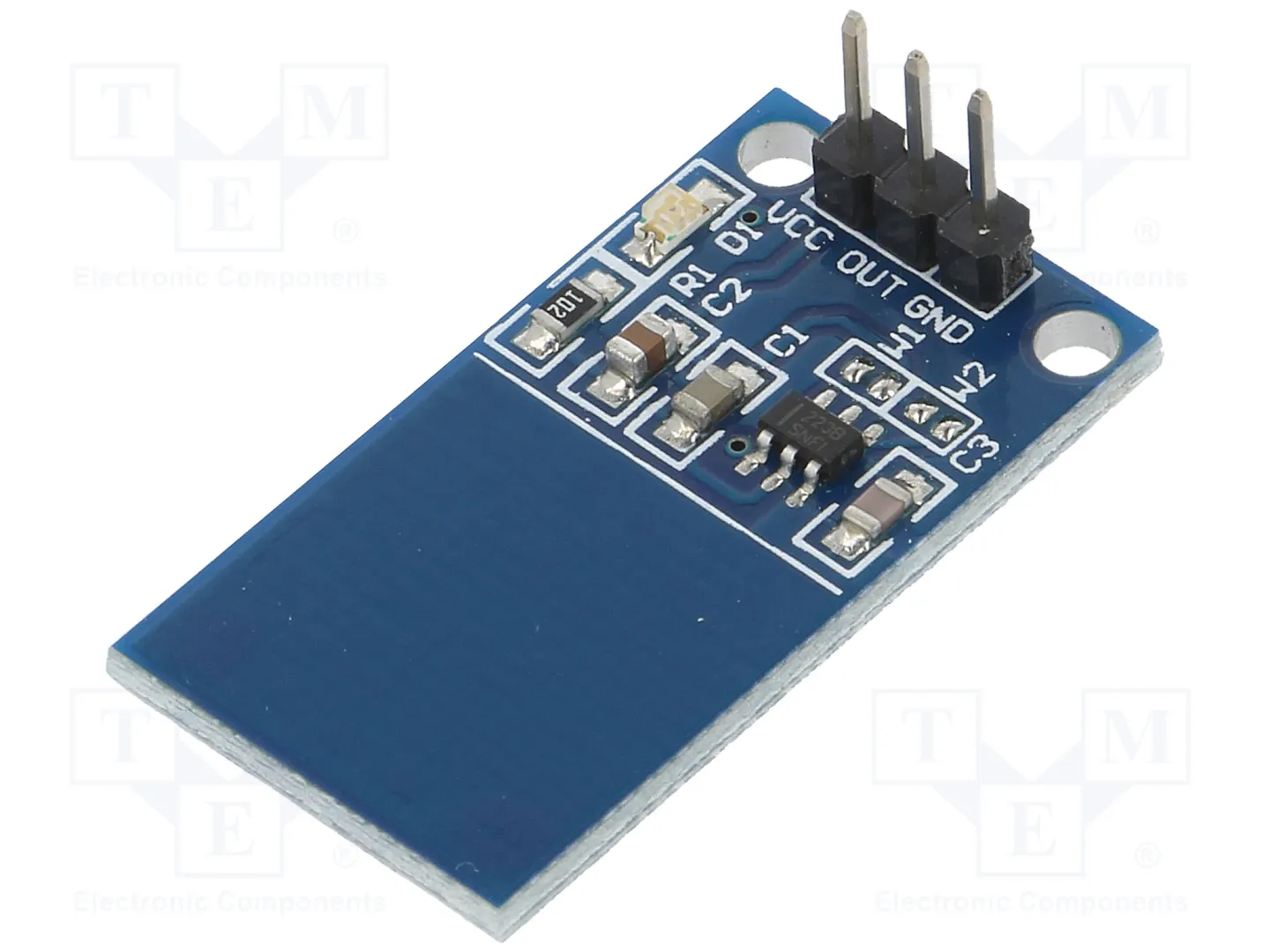

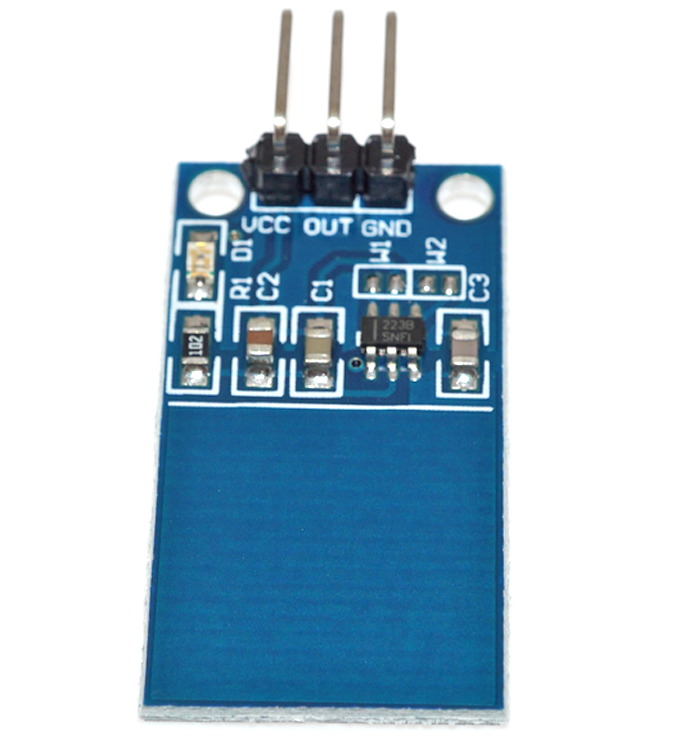

TTP223B Touch Module 1 Channel Capacitive Touch Button for Arduino
Product Description
- Control Interface: 3 pins (GND, VCC, OUT), GND is ground, VCC is the power supply,
- OUT for the digital signal output pin;
- Touch light: red LED, touch that is shiny;
- Touch area: Blank blue area, finger touch can be triggered.
- Positioning holes: two positioning holes M2 screws, pore diameter 2mm, making installation easy positioning module
- PCB size: 16mm * 30mm
- 100% brand new and high quality.
- onboard TTP223 touch capacitive touch sensor IC
- on-board-level status indicator
- working voltage: 2.0V-5.5V
