SMD Resistor 0805 1% 21K5 Taped
Varenummer:
145-392
Varekode: RL0805K021,5-1
150 stk.
på lager
Specifikationer
| Modstand | 21.5 kΩ |
|---|---|
| Tolerance | ±1 % |
| Komponenthus | 0805 |
| Effekt, max. | 0.125 W |
Gruppe: C1845
VISHAY SMD Thick Film Resistors
Series:
CRCW0805...BC
Power: 0,125W
Tolerance: 1%
Housing: 0805
|
Features |
| Metal glaze on high quality ceramic Protective overglaze Excellent stability in different environmental conditions Suitable for commercial applications |
 |
|
Technical Specifications |
|
|||||||||||||||||||||
| Tolerance: | ±1% | Power Rating (70°C): | 0,125W | Operating Voltage, Max.: | 150Vrms | Insulation Resistance: | >109W | Thermal Resistance: | £440K/W | Temperature Coefficient: | ±100x10-6/K | Temperature Range: | - 55°C...+125°C | Climatic Category: | 55/125/56 | Failure Rate: | 3x10-9/h | Derating: | Linear from 70°C to 125°C (0W) | ||
|
|||||||||||||||||||||
| Terms of Delivery |

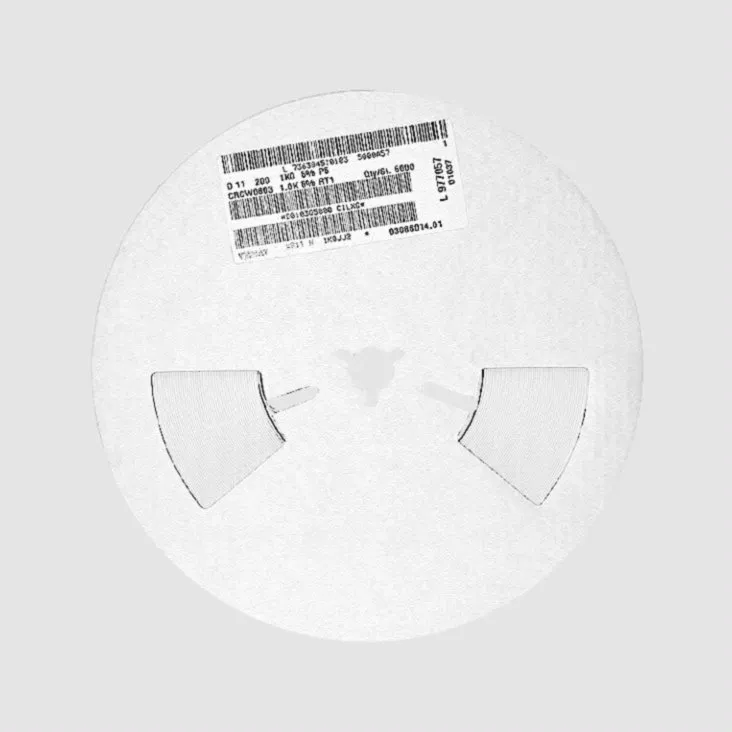

| Minimum order quantity: 1 PKU = 5000 pieces Form of delivery: on 180mm papertape reel |
|
| Manufacturer |
 |
| http://www.vishay.com |
|
