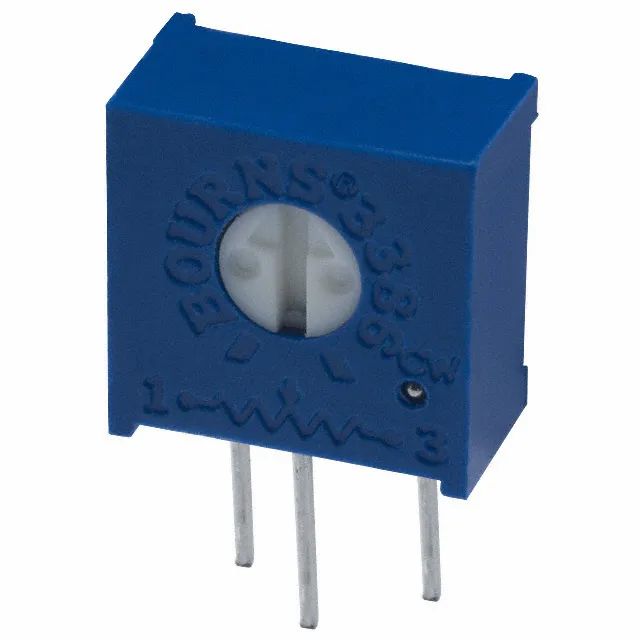

BOURNS - TRIMMER, 10K
Varenummer:
145-273
Varekode: 3386H-1-103
Produktet udgår - Sælges så længe lager haves!
1035 stk.
på lager
-
- TRIMMER, POT, 10K, 10%, 1TURN, TH
- Track Resistance: 10kohm
- No. of Turns: 1
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Power Rating: 500mW
- Potentiometer Mounting: Through Hole
- Adjustment Type: Horizontal
- Contact Resistance Variation +: 1%
- End Resistance: 2ohm
- External Length / Height: 9.5mm
- Full Power Rating Temperature: 85°C
- Lead Diameter: 0.5mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 900V
- Resistance: 10kohm
- Resistor Element Material: Cermet
- Rotation Mechanical Angle: 310°
- Series: 3386H
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Terminal Type: PCB Terminals
- Tolerance +: 10%
- Tolerance -: 10%
- Track Taper: Linear
- Voltage Rating: 300V
- Voltage Rating V DC: 300V
Produktfiler
