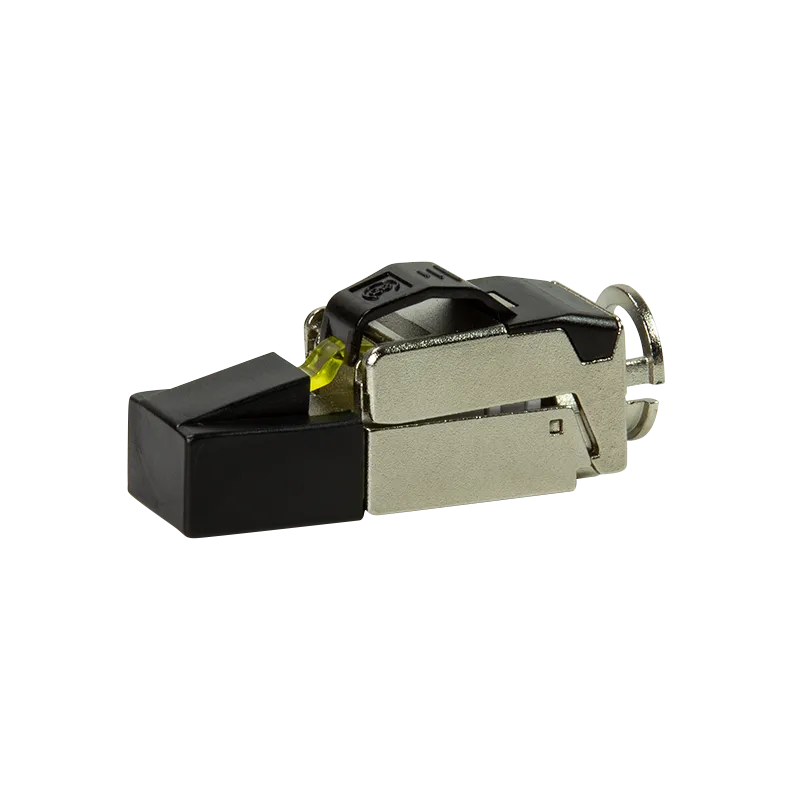

Værktøjsfrit Cat8 STP RJ45 netværkskonnektor
Varenummer:
145-006
Varekode: HMP0081
0 stk.
på lager
CAT.8.1 Field Termination RJ45 Plug, PrimeLine
Product information "CAT.8.1 Field Termination RJ45 Plug, PrimeLine" from LogiLink Professional
LogiLink’s new Cat.8.1 Connector has a greater throughput capability; it supports transmission of data up to 40 Gbps over shielded twisted pair copper cabling. This new Cat.8.1 RJ45 field plug is backward compatible with all previous categories of twisted pair copper cabling (Cat.6A). It supports a maximum channel length of 30m when supporting 25 Gbps and 40 Gbps speeds. The plug can support data speeds of Cat.6A 10 Gbps and lower at a full 100m channel configuration.
- Cat.8.1 Class I ISO/IEC TR11801-9901-2014
- ANSI/TIA 568-C.2-1, IEC 60603-7
- Fully shielded zinc diecast housing
- Cat.8.1: Solid wire, 22-24AWG / Cable OD 7.0 - 8.9mm
- Cat.8: Solid & stranded wire, 23-26AWG / Cable OD 7.0 - 7.5 mm
- Pin assignment: T568A & T568B
- Suitable for Power over Ethernet IEEE 802.3af/at/bt
