Housing Female 20-Pole 2rows
Varenummer:
144-969
Varekode: AMP2794954-0
Vægt: 3 g
0 stk.
på lager
| Features |
| • Receptacle Housings for Crimping Contacts • Easy mate and unmate with positive latch design • UL 94V-2 flammability rated nylon |
 |
| Technical Specifications |
|
|
| Housings: | Nylon (UL94V-2) |
| Operating Voltage, Max.: | 600V AC |
| Operating Current, Max.: | 9A (in 2-position applications) |
| Dielectric Withstanding Voltage, Min.: | 1500V AC |
| Insulation Resistance, Min.: | 1000MW |
| Durability: | 30 Cycles |
|
|

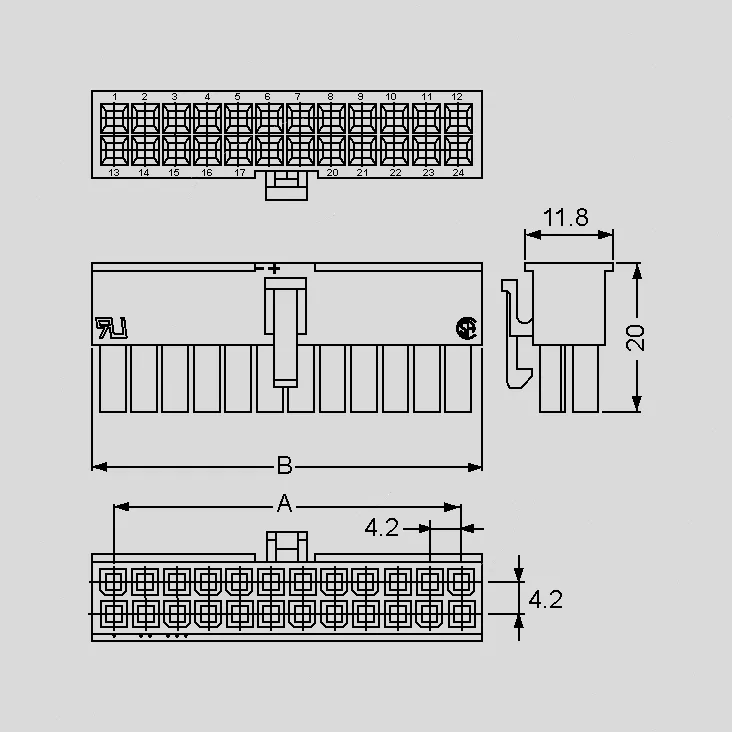

| Dimensions |
| Part Nr. | A | B | |
| [mm] | [mm] | ||
| AMP794954-2 | - | 5,8 | |
| AMP794954-4 | 4,2 | 10,0 | |
| AMP794954-6 | 8,4 | 14,2 | |
| AMP794954-8 | 12,6 | 18,4 | |
| AMP794954-10 | 16,8 | 22,6 | |
| AMP794954-20 | 37,8 | 43,6 | |
|
|||
| Norms |
| UL File No. E28476 and CSA File No. 208567 |
|
| Approvals |
  |
