Box Header 3,5 Hor. 16-Pole
Varenummer:
144-846
Varekode: STL1550WH16
Vægt: 3 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem tirsdag d. 10/11
| Technical
Specifications |
 |
|
| Rated Voltage (EN 61984): | 160V |
| Rated Current (T60): | 9A |
| Rated Surge Voltage: | 4kV |
| Holes in PCB: | 1,2mm |
| Insulating Material: | PA |
| Temperature Range: | -30...+105°C |
| Flammability Class: | UL94V-0 |
| Colour: | Green |
|
|

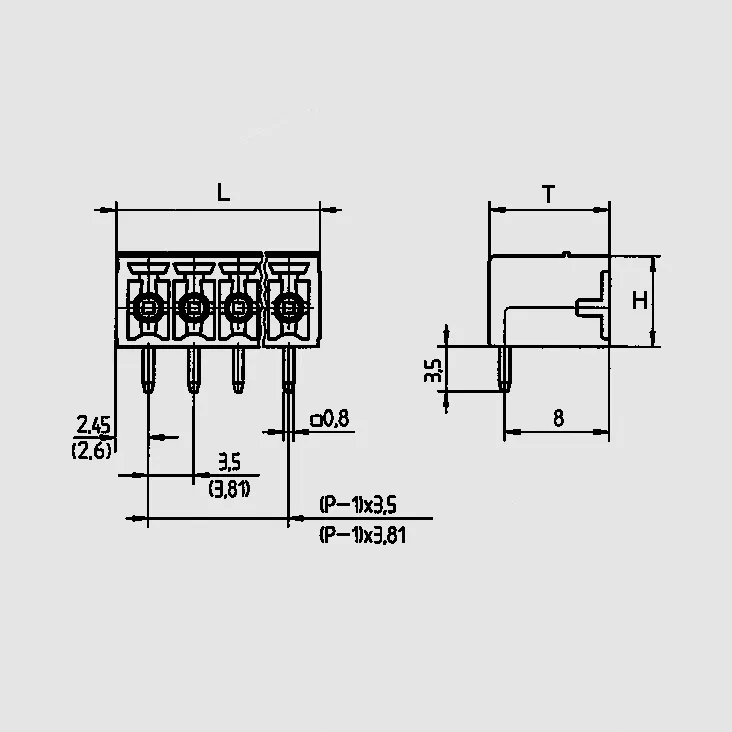

| Dimensions |
| Part Nr. | L | H | T |
| [mm] | |||
| STL1550WH2 | 8,4 | 7,0 | 9,2 |
| STL1550WH3 | 11,9 | 7,0 | 9,2 |
| STL1550WH4 | 15,4 | 7,0 | 9,2 |
| STL1550WH5 | 18,9 | 7,0 | 9,2 |
| STL1550WH6 | 22,4 | 7,0 | 9,2 |
| STL1550WH8 | 29,4 | 7,0 | 9,2 |
| STL1550WH10 | 36,4 | 7,0 | 9,2 |
| STL1550WH12 | 43,40 | 7,0 | 9,2 |
| STL1550WH16 | 57,40 | 7,0 | 9,2 |
|
|||
| Approvals |
 DIN VDE 0627, 1059, |
|
| Additional Products |
| On request also available box headers in various colors and with different numbers of poles: 7, 9, 11, 13, 14, 15, 17, 18, 19 and 20; detailed specifications and original MOQ, please refer to the pdf data sheet. |
