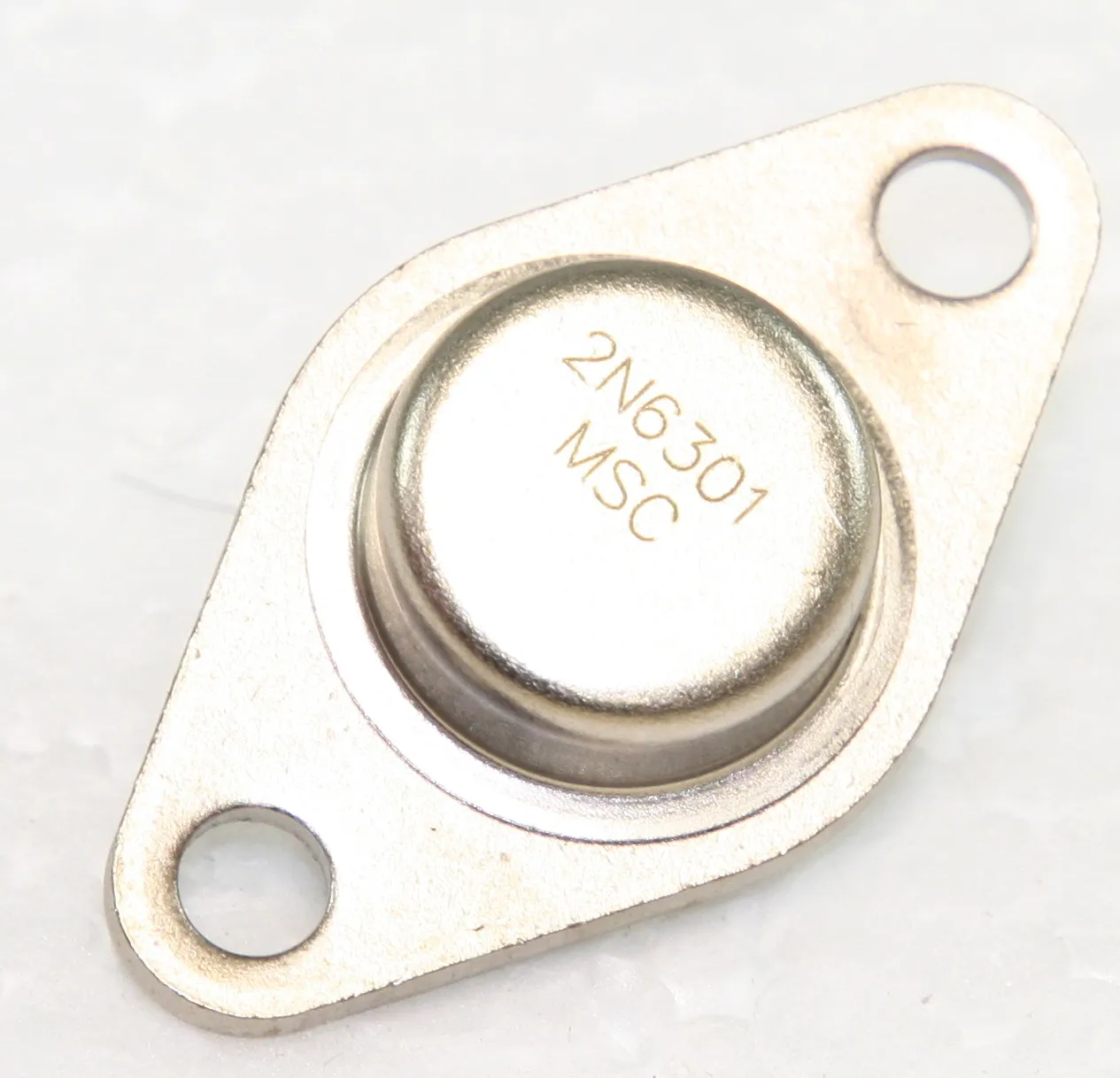

NPN 80V 8A 75W TO-66
2N6301
2N6301 Datasheet, Equivalent, Cross Reference Search
Type Designator: 2N6301
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 75 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 8 A
Max. Operating Junction Temperature (Tj): 200 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 200 pF
Forward Current Transfer Ratio (hFE), MIN: 750
Noise Figure, dB: -
Package: TO-66
Hus: T0-66
