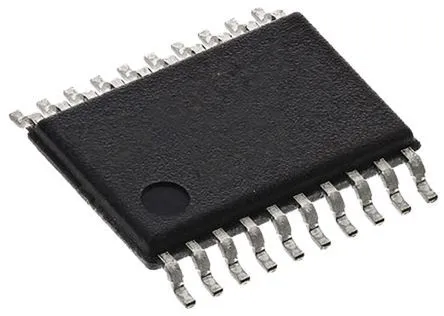

DC/DC Converter Adj TTSOP
Varenummer:
144-443
Varekode: LM25576MH/NOPB
40 stk.
på lager
The LM25576MH/NOPB is a SIMPLE SWITCHER® Step-down Switching Regulator which allows design engineers to design and optimize a robust power supply using a minimum set of components. Operating with an input voltage range of 6 to 42V, the LM25576 delivers 3A of continuous output current with an integrated 170mR N-channel MOSFET. The regulator utilizes an Emulated Current Mode architecture which provides inherent line regulation, tight load transient response and ease of loop compensation without the usual limitation of low-duty cycles associated with current mode regulators. The operating frequency is adjustable from 50kHz to 1MHz to allow optimization of size and efficiency. To reduce EMI, a frequency synchronization pin allows multiple IC's from the regulator to self-synchronize or to synchronize to an external clock. The regulator ensures robustness with cycle-by-cycle current limit, short-circuit protection, thermal shut-down and remote shut-down.
- Master or slave frequency synchronization
- Adjustable soft-start
- Emulated current mode control architecture
- Wide bandwidth error amplifier
- Built-in protection
- Green product and no Sb/Br
-
Udgangsstrøm maks. 3A Regulatorfunktion Buck-kontroller, Inverterende Indgangsspænding min. 6 V Indgangsspænding maks. 42 V Udgangstype Variabel Monteringstype Overflademontering Antal udgange 1 Benantal 20 Kapslingstype TSSOP Switching-regulator Ja Switching-frekvens maks. 1000 kHz Driftstemperatur min. -40 °C Dimensioner 6.5 x 4.4 x 0.9mm Driftstemperatur maks. +125 °C Bredde 4.4mm Længde 6.5mm Efficiency 90% Højde 0.9mm
Inkl. moms
Kr. 49,00
- v/10 – Kr. 39,00
- v/25 – Kr. 35,00
