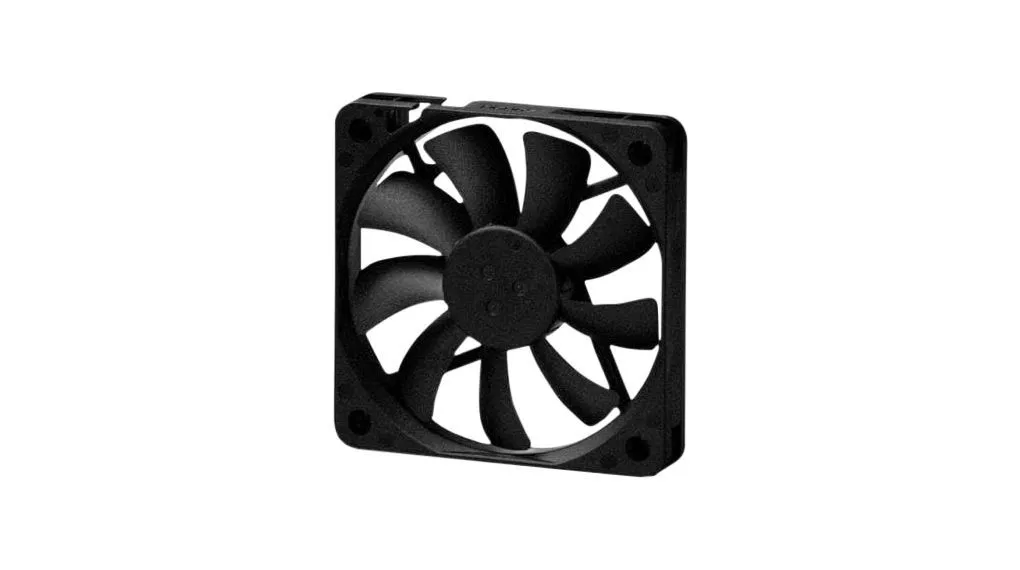

Fan 12V 60x10 V 24,3m³/h 25dBA
Varenummer:
143-756
Varekode: MF60101V21000UA99
Vægt: 44 g
6 stk.
på lager
| Motor: | DC Brushless Motor Design |
| Nr. of Motor Poles: | 4 |
| Frame, Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Bearing System: | Vapo |
| With Magnetic Levitation System | |
| Lead Wire: | AWG26, Stripped, Tinned |
| Rated Voltage: | 12V DC |
| Operating Voltage | |
| MB60101V1_: | 4,5...13,8V DC |
| MB60101V2_: | 6...13,8V DC |
| MB60101V3_: | 8...13,8V DC |
| Dielectric Strength at 65% r. F.: | 500V AC for 1 Min. |
| Insulation Resistance at 500V DC: | >500MOhm |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -10...+70°C |
 |
|
| Part Nr. | URated | PAirflow | Noise | I | Pel | Speed |
| [V] | [m3/h] | [dBA] | [A] | [W] | [RPM] | |
| MB60101V1-A99 | 12 | 27,18 | 28,5 | 0,12 | 1,44 | 4000 |
| MF60101V11000UA99 | 12 | 27,68 | 28,5 | 0,108 | 1,30 | 4000 |
| MF60101V21000UA99 | 12 | 24,29 | 25 | 0,075 | 0,90 | 3500 |
| MF60101V31000UA99 | 12 | 20,72 | 20,5 | 0,046 | 0,56 | 3000 |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% | ||||||
Inkl. moms
Kr. 64,69
- v/10 – Kr. 53,91
- v/100 – Kr. 43,12
