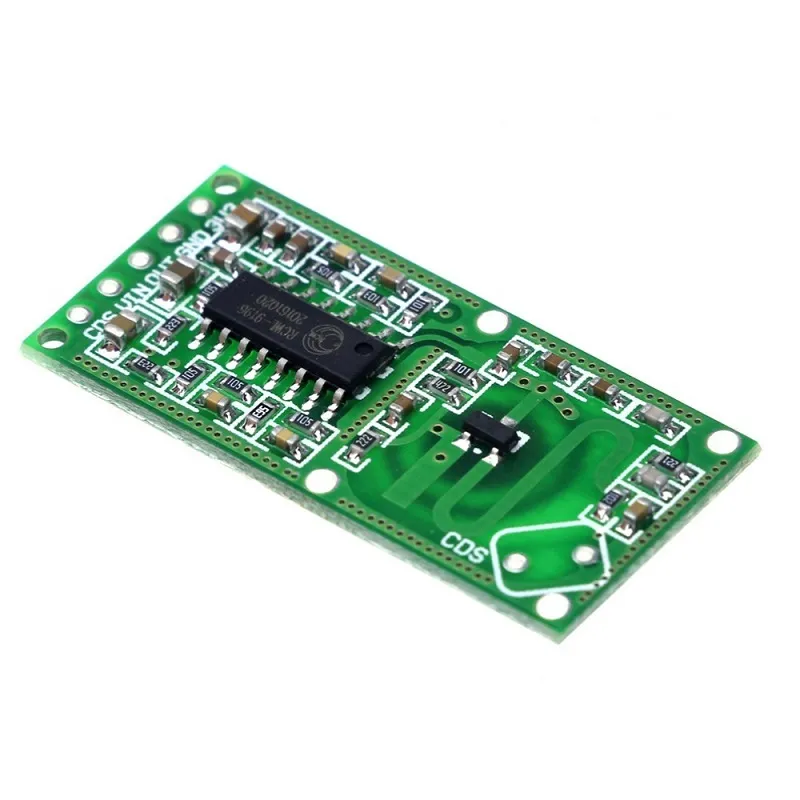

RCWL-0516 MICROWAVE RADAR MOTION DETECTOR
RCWL-0516 MICROWAVE RADAR MOTION DETECTOR
This module has been designed as an alternative to the PIR motion detectors commonly used in burglar alarms. Instead of sensing changes in infrared radio emitted by a moving person this sensor uses a microwave Doppler radar to detect moving objects. It has a sensitivity range of ~7 meters. When triggered its trigger output pin will switch from (LOW) 0V to high (3.3V) for ~ 2 to 3 seconds before returning to its idle LOW state.
Features:
Product code: HCSENS0040
Supply Voltage: 5V dc
Supply Current: >3mA (2.8mA typical)
Operating frequency: ~3.2GHz
Transmit power: 20mW (typical) / 30mW (max)
Size: 36mm x 17mm
Notes:
Component side should face detection area for maximum sensitivity
Do not place metal objects within 1cm of antenna
Trigger out - HIGH (3.3V) motion / LOW no motion
3.3V output is for reference only - do not use to power other devices.
Device operates at ~3.2GHz/20 - 30mW. In some countries it may be illegal to operate this device.
Pinout:
3V3..........Regulated output (reference only)
GND.........Ground / 0V supply input
OUT..........Trigger: HIGH (3.3V) motion detected / LOW (0V) idle
VIN.......... 5V-12V supply input
CDS..........Sensor disable input (pull low to disable)
