MKT Capacitor 3,3nF 63V 10% P2,5

Varenummer: 143-430
Varekode: MKS02N003,3K63-2,5
38 stk. på lager
Bestil nu for afsendelse i morgen
Vis lignende produkter i kategorien "3,3nF = 0,0033uF"
Features
• Dielectric: Polyethylene-terephthalate (PET) film
• Capacitor electrodes Vacuum-deposited
• Encapsulation: Solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL 94 V-0
• Terminations Tinned wire
• High volume/capacitance ratio and reduced base
• Pitch 2,5 mm
• Self-healing
Typical Applications
For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing
Technical Specifications
    Rated Voltages (UN): see Table Test Voltage (2s): 1,6xUN Capacitance tolerances: ±10% Operating temperature range: -55...+100°C Climatic test category IEC 55/100/21 Insulation resistance C�330nF: ³3750 MW C>330nF: ³1250s Rate of Change (du/dt), Max.: 10n...22nF: 50/500V / μs 33n...68nF: 30/300V / μs 100n...330nF: 20/200V / μs 470n...1μF: 15/150V / μs Relliability (failure rate) (40°C, 0,5 x UN): 2,0 fit1)
1) 1fit = 1x10 -9 Failure Components/Hour

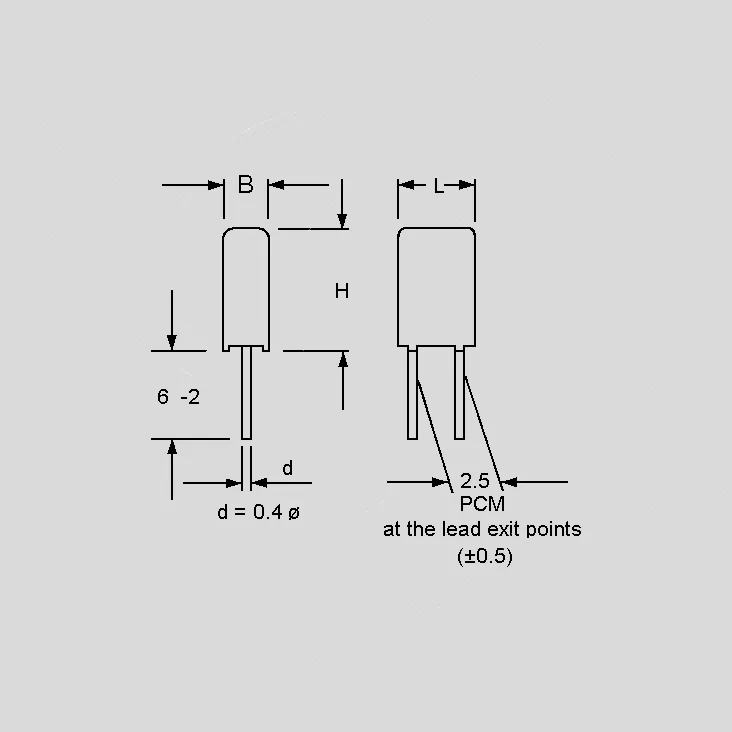

                Part Nr. CN UN Ueff B H L P MKS02_ [nF] [V=] [V~] [mm] [mm] [mm] [mm] N010K63-2,5 10 63 40 2,5 7 4,6 2,5 N015K63-2,5 15 63 40 2,5 7 4,6 2,5 N022K63-2,5 22 63 40 2,5 7 4,6 2,5 N033K63-2,5 33 63 40 2,5 7 4,6 2,5 N047K63-2,5 47 63 40 2,5 7 4,6 2,5 N068K63-2,5 68 63 40 3,0 7,5 4,6 2,5 N100K63-2,5 100 63 40 3,0 7,5 4,6 2,5 N220K63-2,5 220 63 40 3,0 7,5 4,6 2,5 N330K63-2,5 330 63 40 3,8 8,5 4,6 2,5 N470K63-2,5 470 63 40 5,5 10 4,6 2,5 U1,0K50-2,5 1000 50 30 5,5 10 4,6 2,5
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
Dissipation Factor Tand (20°C)
            Measured at     1kHz 10kHz 100kHz C �8x10-3 �15x10-3 �30x10-3 100nF �8x10-3 �15x10-3 -
Labelling
Marking: colour red. Marking: Silver
Epoxy resin seal: colour yellow
Manufacturer
http://www.wima.de
Inkl. moms
Kr. 3,80
  • v/10 – Kr. 3,04
  • v/25 – Kr. 2,28
  • v/100 – Kr. 1,52
  • v/1000 – Kr. 1,37
