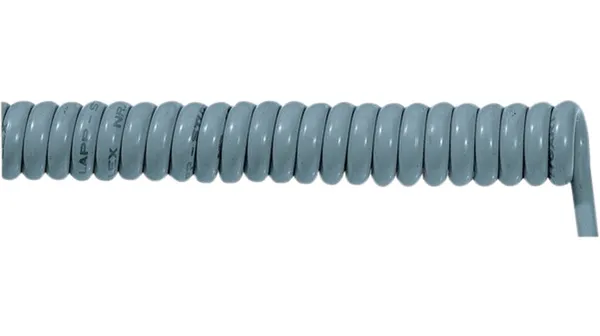

Spiralkabel 4x0.75mm² 1,5/4,5mtr
Varenummer:
143-303
Varekode: 2636
Vægt: 642 g
1 stk.
på lager
Bestil nu for afsendelse i morgen
Yderligere kan skaffes mandag d. 26/10
|
Type of wire
|
coiled | ||||||||||||||||||||||||
|
Kind of wire
|
| ÖLFLEX® SPIRAL 400 P |
|
Cable structure
|
4G0.75mm2 | |||||||||||
|
Core structure
|
stranded | |||||||||||
|
Kind of core
|
| Cu |
|
Number of cores
|
4 | |
|
Core section
Solid and stranded conductors construction according to AWG
|
| 0.75mm2 |
|
Insulation colour
|
grey | |
|
Rated voltage
For products in the Cables and Wires category, a digit/digit number indicates:
Rated volage U0/U where: U0 = cable nominal voltage between the conductor and the metal covering or earth U = cable nominal voltage between the phase conductors |
| 300V/500V |
|
Operating temperature
|
5...50°C | |
|
Coiled cable length before stretching
|
1.5m | |
|
Length of the lengthen coiled cord
|
4.5m | |
|
Cable external diameter
|
6.2mm | |
|
Core marking
|
black, numbered + ground wire | |
|
Flexibility class
|
5 | |
|
Earth core
|
yellow-green | |
|
CPR standard
|
no classification | |
|
Resistance to
|
benzene, benzol, most of chemical compounds, most of oils |
Cable features
- high restoring force
- straight ends 200/600mm
Gross weight724.5 g
Inkl. moms
Kr. 787,50
- v/5 – Kr. 677,50
Produktfiler
