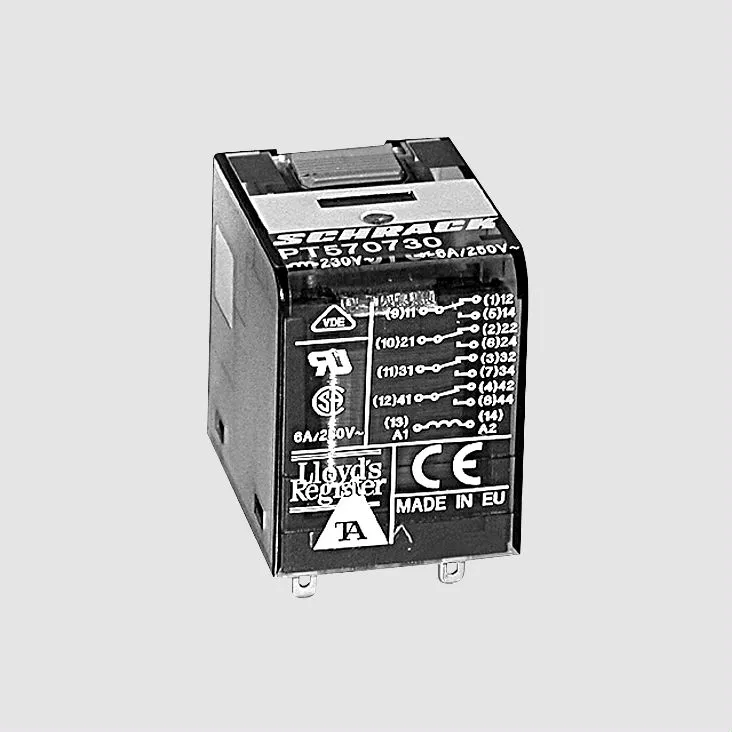

PT-Relæ 4xU 6A 24VAC 192R
Varenummer:
143-021
Varekode: PT570524
1 stk.
på lager
Bestil nu for afsendelse i morgen
| Features |
| • High switching capacity • Mechanical and electrical indicator • Manual test tab, optionally lockable • White marking tabs |
 |

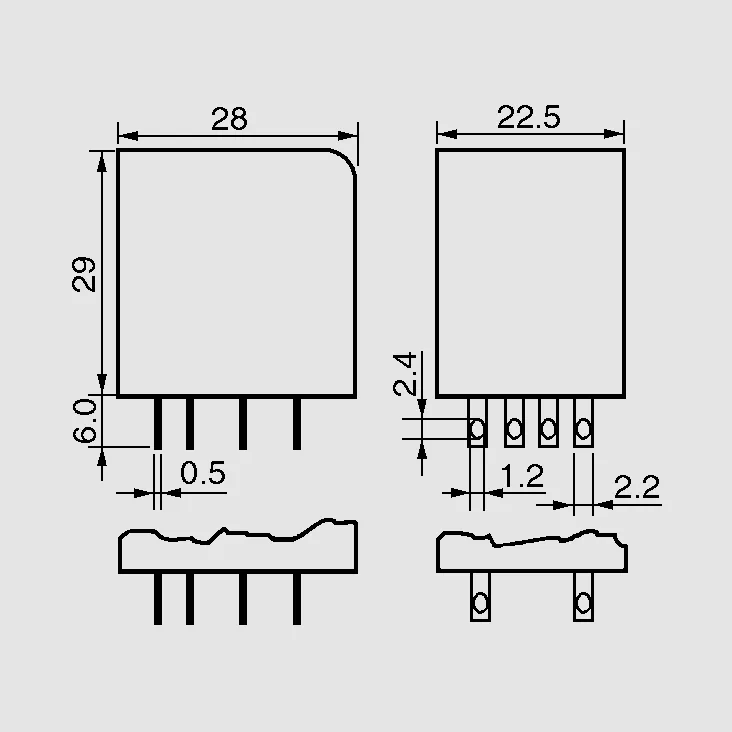

| Technical Specifications |
|
|
| Insulation Class1) | |
| PT270_: | C/250 |
| PT570_: | B/250 |
| Insulation Voltage | |
| Coil/Contacts: | 2500Veff |
| Open Contact2), Typ.: | 1500Veff |
| Clearance/Creepage: | |
| PT270_: | 3/4mm |
| PT570_: | 1,8/3mm |
| Ambient Temperature: | -40...+70°C |
| Operate Time, Typ.: | 15 ms |
| Release Time, Typ.: | 10ms |
| Vibration Resistance (N/O Contact/N/C Contact): | >7/4g |
| Protection Class: | IP50 |
| Mechanical Life | |
| DC Coil: | >30x106 |
| AC Coil: | >20x106 |
| 1) In Accordance with VDE0110, 2) In Retirement | |
|
|
| Contact Data |
|
|
| Configuration | |
| PT270_: | 2 x SPDT |
| PT570_: | 4 x SPDT |
| Contact Material: | AgNi 90/10 |
| Rated Load | |
| PT270_: | 2x12A |
| PT570_: | 4x6A |
| In-Rush Current, Max. | |
| PT270_: | 2x24A |
| PT570_: | 4x12A |
| Rated Voltage: | 250V AC |
| Switching Voltage, max. | |
| PT270_: | 440V AC |
| PT570_: | 250V AC |
| Breaking Capacity, Max. | |
| PT270_: | 3000VA |
| PT570_: | 1500VA |
| Electrical Life | |
| PT270_: | 10x105 Operations |
| PT570_: | 10x105 Operations |
|
|
| Coil Data |
| Part Nr. | UN | UAn | UAb | IN | RN |
| [V] | [V] | [V] | [mA] | [W] | |
| PT270-12 | 12= | 9 | 1,2 | 62,5 | 192 |
| PT270-24 | 24= | 18 | 2,4 | 31,3 | 777 |
| PT270-AC230 | 230~ | 184 | 69 | 4,3 | 19465 |
| PT570-12 | 12= | 9 | 1,2 | 62,5 | 192 |
| PT570-24 | 24= | 18 | 2,4 | 31,3 | 777 |
| PT570-AC230 | 230~ | 184 | 69 | 4,3 | 19465 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Disengaging Voltage, IN = Nominal Voltage, RN = Coil Resistance; All Specs. are Valid at 20°C Ambient Temperature. | |||||
|
|||||
| Approval |
   Lloyds Register |
Produktfiler
PT-Relæ 4xU 6A 24VAC 192R
143-021
/ PT570524
1 stk.
på lager
Bestil nu for afsendelse i morgen
Kontakt os for at få oplyst leveringstid
| Features |
| • High switching capacity • Mechanical and electrical indicator • Manual test tab, optionally lockable • White marking tabs |
|
| Technical Specifications |
|
|
| Insulation Class1) | |
| PT270_: | C/250 |
| PT570_: | B/250 |
| Insulation Voltage | |
| Coil/Contacts: | 2500Veff |
| Open Contact2), Typ.: | 1500Veff |
| Clearance/Creepage: | |
| PT270_: | 3/4mm |
| PT570_: | 1,8/3mm |
| Ambient Temperature: | -40...+70°C |
| Operate Time, Typ.: | 15 ms |
| Release Time, Typ.: | 10ms |
| Vibration Resistance (N/O Contact/N/C Contact): | >7/4g |
| Protection Class: | IP50 |
| Mechanical Life | |
| DC Coil: | >30x106 |
| AC Coil: | >20x106 |
| 1) In Accordance with VDE0110, 2) In Retirement | |
|
|
| Contact Data |
|
|
| Configuration | |
| PT270_: | 2 x SPDT |
| PT570_: | 4 x SPDT |
| Contact Material: | AgNi 90/10 |
| Rated Load | |
| PT270_: | 2x12A |
| PT570_: | 4x6A |
| In-Rush Current, Max. | |
| PT270_: | 2x24A |
| PT570_: | 4x12A |
| Rated Voltage: | 250V AC |
| Switching Voltage, max. | |
| PT270_: | 440V AC |
| PT570_: | 250V AC |
| Breaking Capacity, Max. | |
| PT270_: | 3000VA |
| PT570_: | 1500VA |
| Electrical Life | |
| PT270_: | 10x105 Operations |
| PT570_: | 10x105 Operations |
|
|
| Coil Data |
| Part Nr. | UN | UAn | UAb | IN | RN |
| [V] | [V] | [V] | [mA] | [W] | |
| PT270-12 | 12= | 9 | 1,2 | 62,5 | 192 |
| PT270-24 | 24= | 18 | 2,4 | 31,3 | 777 |
| PT270-AC230 | 230~ | 184 | 69 | 4,3 | 19465 |
| PT570-12 | 12= | 9 | 1,2 | 62,5 | 192 |
| PT570-24 | 24= | 18 | 2,4 | 31,3 | 777 |
| PT570-AC230 | 230~ | 184 | 69 | 4,3 | 19465 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Disengaging Voltage, IN = Nominal Voltage, RN = Coil Resistance; All Specs. are Valid at 20°C Ambient Temperature. | |||||
|
|||||
| Approval |
| Lloyds Register |
