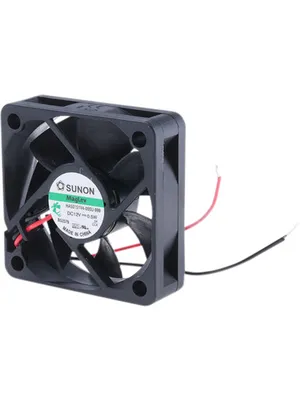

Fan 12V 50x15 V 13,1m³/h 15,4dBA
Varenummer:
142-922
Varekode: HA50151V41000UA99
Vægt: 33 g
Vis lignende produkter i kategorien "50x50x15"
 |
| |
|
| Motor: |
One-phase Single Coil DC Brushless |
| Nr. of Motor Poles: |
4 |
| Frame, Impeller: |
Filled Thermoplastic PBT (UL94V-0) |
| Bearing System: |
Vapo |
| With Magnetic Levitation System |
| Lead Wire: |
UL1007 AWG26, Stripped, Tinned |
|
|
| |
|
| Rated Voltage: |
12V DC |
| Operating Voltage: |
4,5...13,8V DC |
| Dielectric Strength: |
500V AC for 1 Min. |
| Insulation Resistance at 500V DC : |
10MOhm |
| Storage Temperature: |
-40...+70°C |
| Operating Temperature: |
-10...+70°C |
|
| |
|
|
|
|
|
|
| Part Nr. |
URated |
PAirflow |
Noise |
I |
Pel |
Speed |
| |
[V] |
[m3/h] |
[dBA] |
[A] |
[W] |
[RPM] |
| HA50151V41000UA99 |
12 |
13,07 |
15,4 |
0,025 |
0,3 |
3200 |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% |
|
| Labelling |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
|
|
