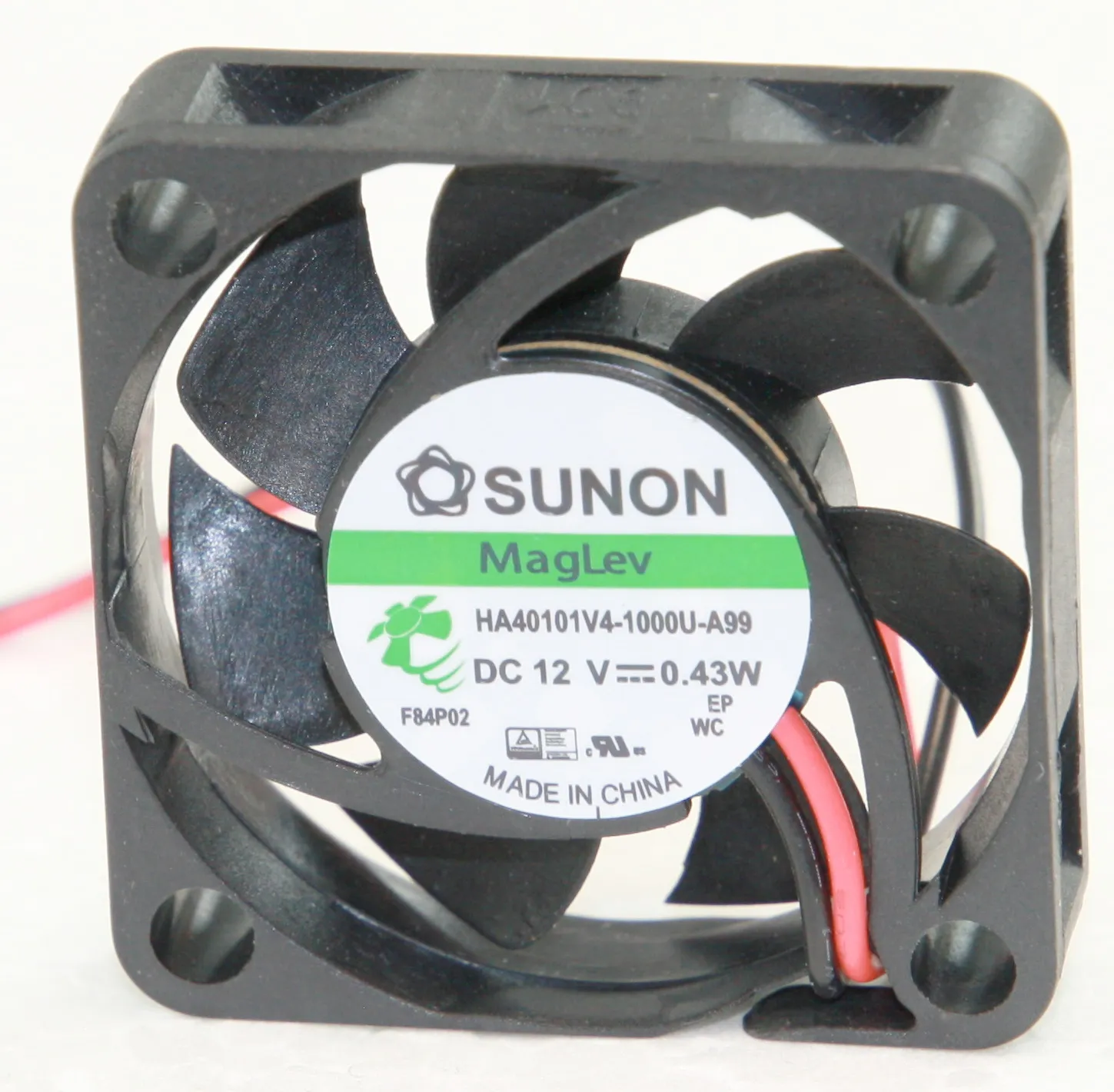

Fan 12V 40x10 V 9,2m³/h 15,7dBA
Varenummer:
142-862
Varekode: HA40101V41000UA99
Vægt: 16 g
198 stk.
på lager
| Design |
 |
|
| Motor: | DC Brushless Motor Design |
| Nr. of Motor Poles: | 4 |
| Frame, Impeller: | Filled Thermoplastic PBT (UL94V-0) |
| Bearing System: | Vapo |
| With Magnetic Levitation System | |
| Lead Wire: | AWG26, Stripped, Tinned |
|
|
| Technical Specifications |
|
|
| Rated Voltage: | 12V DC |
| Operating Voltage: | 4,5...13,8V DC |
| Dielectric Strength at 65% r. F.: | 500V AC for 1 Min. |
| Insulation Resistance at 500V DC : | 10MOhm |
| Storage Temperature: | -40...+70°C |
| Operating Temperature: | -10...+70°C |
|
|
| Part Nr. | URated | PAirflow | Noise | I | Pel | Speed |
| [V] | [m3/h] | [dBA] | [A] | [W] | [RPM] | |
| HA40101V41000UA99 | 12 | 9,17 | 15,7 | 0,031 | 0,38 | 5000 |
| PAirflow = Airflow, Pel = Rated Power and Current Tolerance, ±15% | ||||||
HA40101V4-10000-A99
