Transformer 0,33VA 230V 15V 22mA
Varenummer:
142-418
Varekode: GERTH150.15
18 stk.
på lager
Gruppe: D7410
HAHN Miniature Transformers

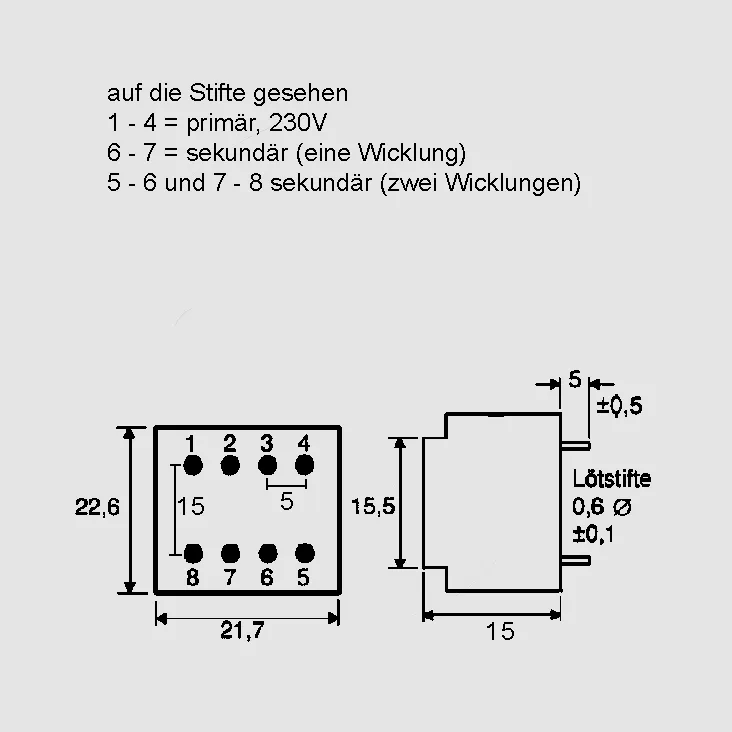

Core: EE20/6
Short-Circuit Proof
Output: 0,35VA
Input Voltage: 230V
|
Features |
| • Winding of double coated copper wire for better
insulation, vacuum casted, two chambers • Connections for PCB use |
 |
|
Technical Specifications |
|
|||||||||||||||||
| Temperature Class1): | Ta 70/B | End Temperature in Case of Short Circuit, Max 2): | 175°C | End Temperature in Standard Use: | 120°C | Permissible Overtemperature3): | 50K | Primary Voltage (50/60Hz): | 230V AC | Power, Max. (Ta 70/B)2): | 0,35VA | Insulation Voltage: | 4kV/50Hz | No-Load Voltage (According to VDE 0570): | 2 x UN sec | ||
| 1) The Maximum Permissible Continuous Ambient Temperature Applies in the Event of Short-Circuit, 2) Taking into Account the Indicated Temperature Resistance Class, 3) At 70°C Ambient Temperature | |||||||||||||||||
|
|||||||||||||||||
| Approvals |
 0570,   10 |
|
| Additional Products |
| Orders of 100 pieces on request, delivery time approx. 5 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
HAHN GmbH & Co. KG |
| http://www.hahn-trafo.com |
|
