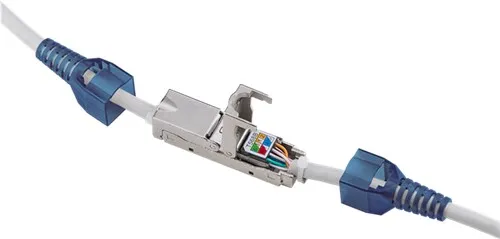

Toolless Inline coupler "slim" STP shielded
Toolless Inline coupler "slim" STP shielded
to connect two network installation cables
This cable connector is designed for eight-wire connection, extension, repair or rerouting of Cat 6 or 6A data/LAN cables, and does away with the need for bulky connection boxes. It is incredible easy to assemble – no special tools required – and can be effortlessly extended in cable ducts while only taking up a small amount of space; its dimensions are 18 x 26 x 39 mm (W x H x L). Fully shielded housing made of die-cast zinc, featuring strain relief on both sides.
- shield connection and strain relief integrated in the housing
- easy and fast assembly without special tools
- easy connection of data cables AWG 24/1 to 22/1 (solid wire)
- solid copper wire diameter 0.5 to 0.64 mm
- stranded copper wire diameter 0.61 to 0.76 mm
- suitable for cables with an overall diameter of 5.0 to 9.7 mm
Technical specifications
- Connections
- Connection, type LSA connectors (toolless)
- Connection 2, type LSA connectors (toolless)
- Cable
- Shielding class STP
- Specification CAT 6a
- Signal transmission
- max. bandwidth 500 MHz
- General
- Materialzinc die-cast
- Length 65 mm
- Width 11 mm
- Height 11 mm
