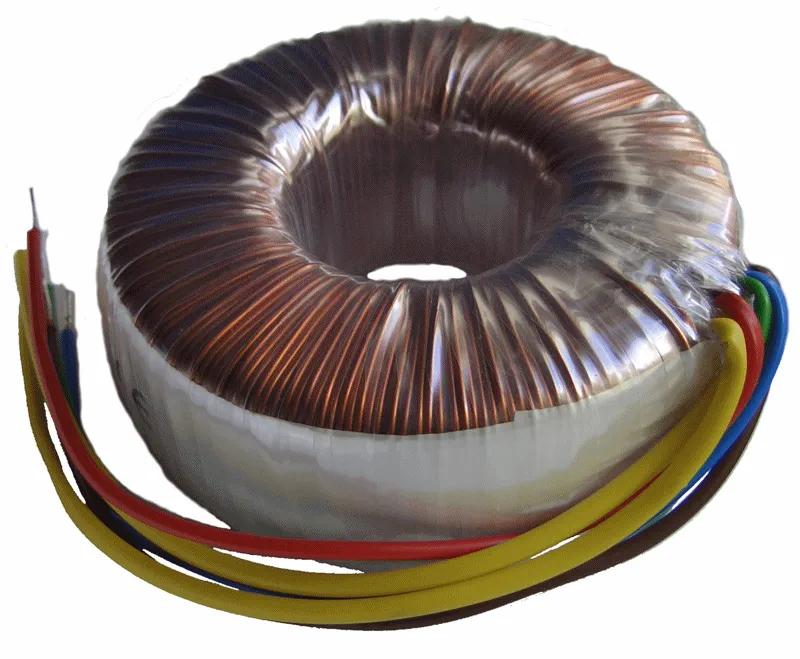

Ringkernetrafo 120VA 1x230V 2x6V
Varenummer:
142-304
Varekode: TRT120206
1 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Gruppe: D8117
TALEMA Toroidal Transformers
Open Style
Output: 120VA
| Technical
Specifications |
 |
|
| Power: | 120VA |
| Primary Voltage, ±10% | |
| TRT_: | 1x230V |
| TRT_UL: | 2x115V |
| Secondary Voltage | |
| TRT120212_: | 2x12V |
| TRT120215_: | 2x15V |
| TRT120218: | 2x18V |
| TRT120222: | 2x22V |
| Copper Loss, Typ. (120°C): | 13,9W |
| Iron Loss, Typ.: | 0,76W |
| No-Load Current, Typ. (230V): | 8,5mA |
| Dimensions: | 92x45mm |
| Weight: | 1,3kg |
|
|
| Labelling |
 |
|
| Approvals |
TRT_:   05TRT_UL:  05 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece Delivery contents: transformer, 1 dished steel washer, 2 rubber pads, 1 central screw, 1 bolt |
