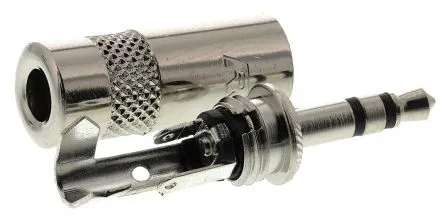

JACK stik 3,5mm stereo han, REAN (for kabel Ø max 4mm)
NYS231 Mini jackstik Ningbo stereo, metalhus
3 polet 3,5 mm jackstik, metalhus med crimp-aflastning.
Dielectric strength: 0.5 kVdc
Insulation resistance: ≥ 1 GΩ
Rated current: depends on mated connector
Contact resistance: depends on mated connector
Cable O.D.: 4 mm
Insertion force: ≤ 20 N
Withdrawal force: ≥ 10 N
Lifetime: 1000 mating cycles
Contact plating: Nickel
Contacts: Brass (CuZn39Pb3)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: SnCe plated, crimp type
Insulation: Thermoplastic
Solderability: Complies with IEC 68-2-20
Temperature range: -25 °C to +70 °C
- v/10 – Kr. 18,75
- v/50 – Kr. 17,50
