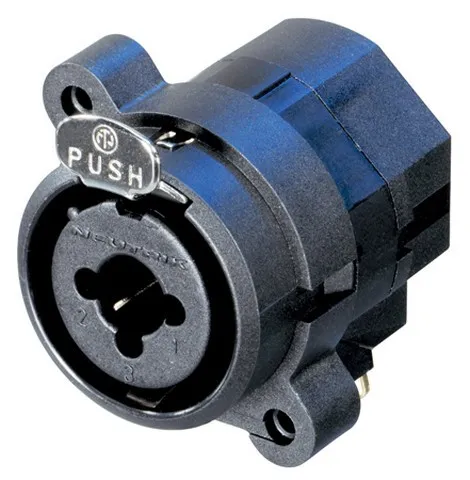

3-pol XLR/Jack 1/4" Hun Chassis/Print combo NEUTRIK
Varenummer:
142-005
Varekode: NCJ-5FIS
Vægt: 16 g
0 stk.
på lager
Ved bestilling nu, får vi dem hjem lørdag d. 31/10
NCJ5FIS COMBO chassis fatning hun
Contact resistance:
Contact resistance:
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GΩ (initial)
Rated current per contact: 7,5 A (XLR)
Rated current per contact: 7,5 A (Jack)
Rated voltage:
Insertion force: ≤ 25 N
Withdrawal force: ≤ 25 N
Lifetime: > 1000 mating cycles
Panel thickness: max. 7 mm 0.27"
Mounting direction: Rear mounting
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: Steel Ck67
Temperature range: -30 °C to +80 °C
Produktfiler
