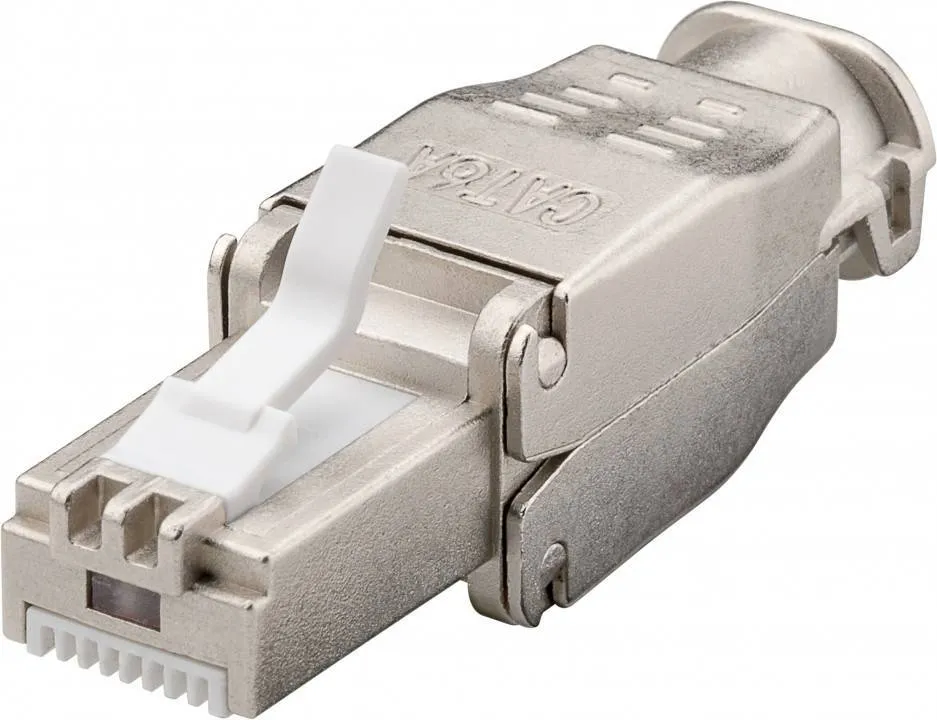

Værktøjsfrit CAT 6a STP RJ45 netværkskonnektor
Varenummer:
141-736
Varekode: W38292
Vægt: 20 g
Produktet udgår - Sælges så længe lager haves!
10 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Specifikationer
| Passer til | 141-703 |
|---|
Tool-free RJ45 network connector STP shielded
max. cable OD: 9 mm
- STP shielded with strain relief
- suitable for round cable, max. cable outer diameter: 9 mm
- for stranded and solid inner conductor (AWG 22 to 24)

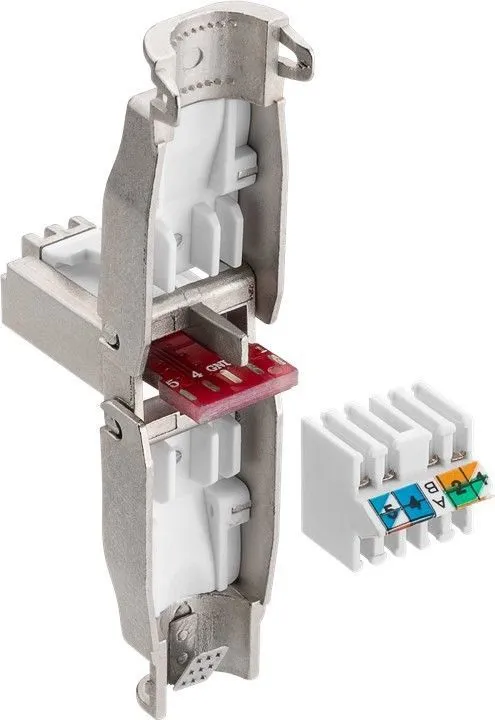

- easy and tool-free assembly
- simply press down on the connector housing
- supports transmission rates on the order of gigabits
- cable contacts marked in colour
Technical specifications
- Connections
- Connection, contact material gold-plated 3µ
- Connection, type RJ45 male (8P8C)
- Connection 2, type LSA connectors (toolless)
- Cable
- Shielding class STP
- Specification CAT 6a
- General
- Consumption Unit 1 pcs. polybag
- Materialzinc die-cast
- Length 52 mm
- Width 15 mm
- Height 15 mm
