CAT 7A+ Netværkskabel,S/FTP CU, 22/1 AWG SOLID, 100M
Varenummer:
141-703
Varekode: W91893
Vægt: 6496 g
2 stk.
på lager

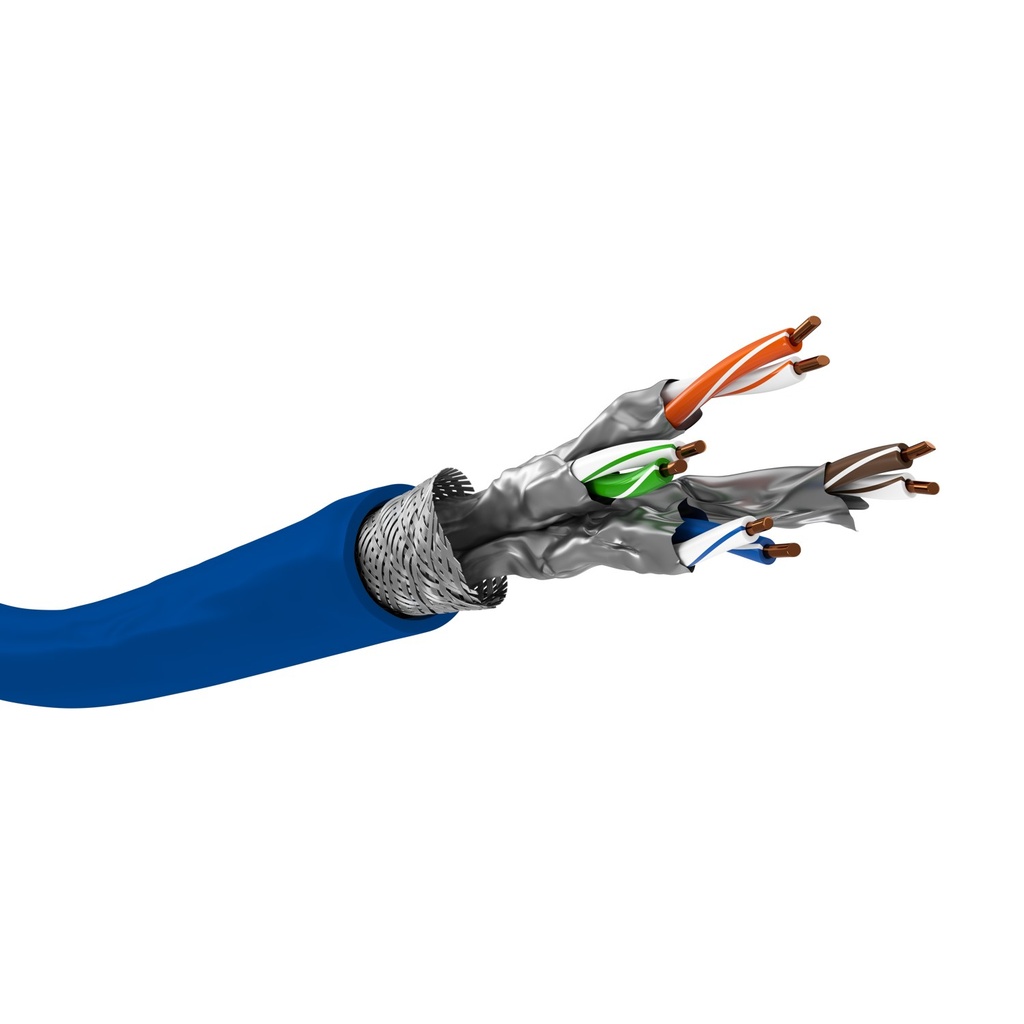

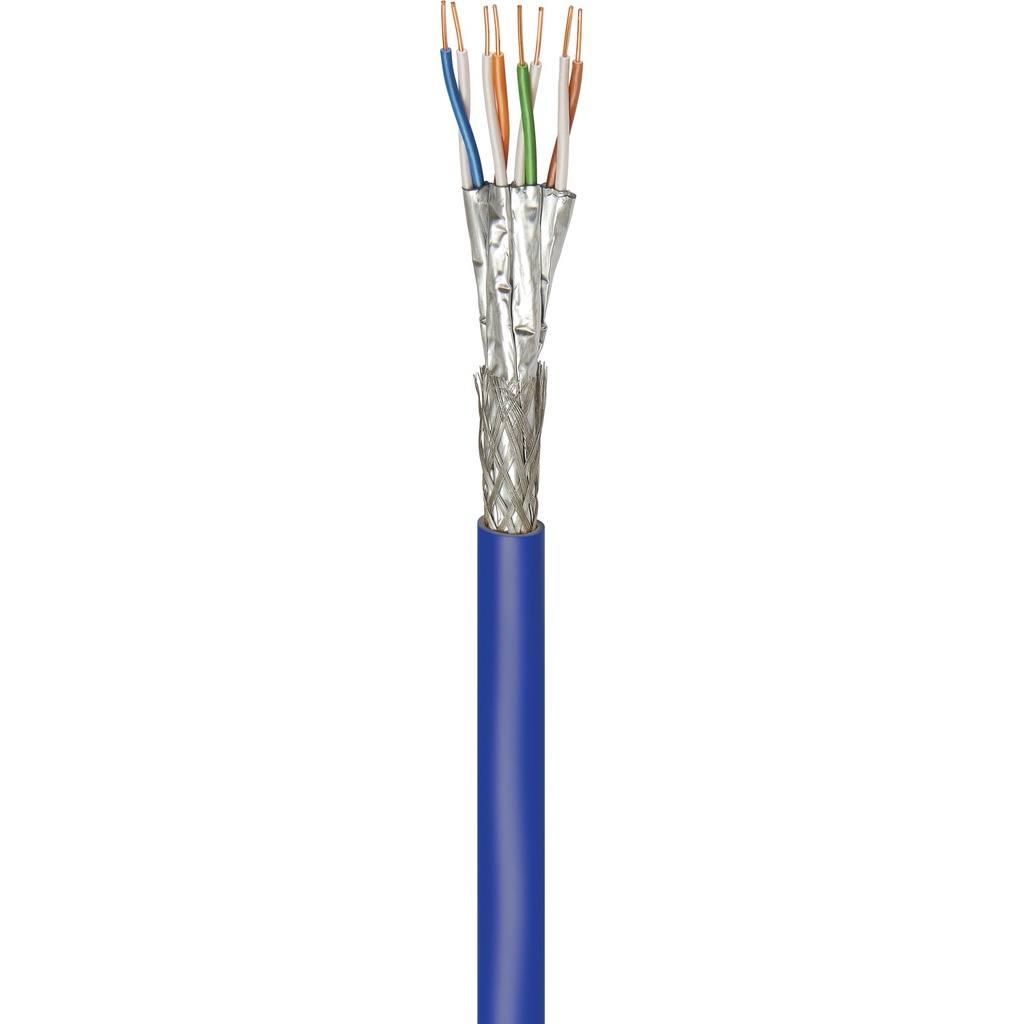

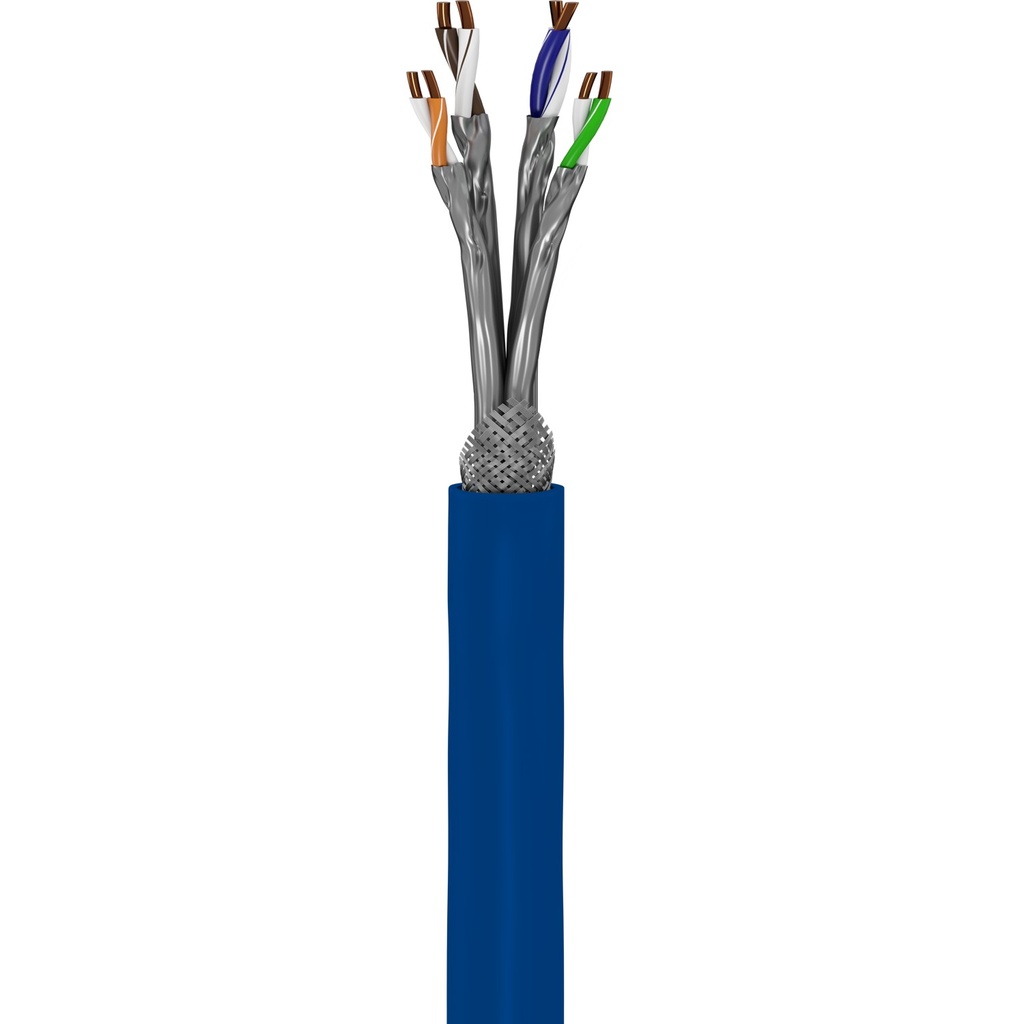

CAT 7A+ network cable, S/FTP (PiMF), blue
CU, AWG 22/1 (solid), LSZH
suitable for applications: up to Class F(A) 1200 MHz Power over Ethernet (PoE/PoE+) analogue/digital signals, video, Voice over IP(VoIP) IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T; 10GBase-T Int. standard ISO/IEC 11801 2nd ed., IEC 61156-5 Euro. standard: EN 50173-1 EN 50288-9-1 FRNC/LSZH = Flame Reterdant Non Corrosive /Low Smoke Zero Halogen
- non-terminated data-/installationcable for proccessing and installation with LSA connection technology for indoor using
- suitable for applications: up to Class F(A) 1200 MHz
- double shielded twisted-pair LAN cable
- pairs screening: PIMF (pairs in metal foil) + outer shield: braiding
- Power over Ethernet (PoE/PoE+)
Technical specifications
- Performance
- Fire class according to DIN EN 13501-6Cca
- Cable
- Cable type round cable
- Specification CAT 7A+
- Shielding class S/FTP (PiMF)
- AWG22/1 (solid)
- Cable sheath diameter (approx.)7.8 mm /1,5 mm /0,62 mm
- Inner conductor material CU (copper)
- Material cable sheath LSZH
- Cable length 100 m
- Meter scalingyes
- Number of shieldings 2 x
- Type 1, shieldingfoil (alu) PiMF
- Type 2, shieldingbraid (copper)
- LSZH compliantyes
- Signal transmission
- max. bandwidth 1200 MHz
- Impedance 100 Ω
- General

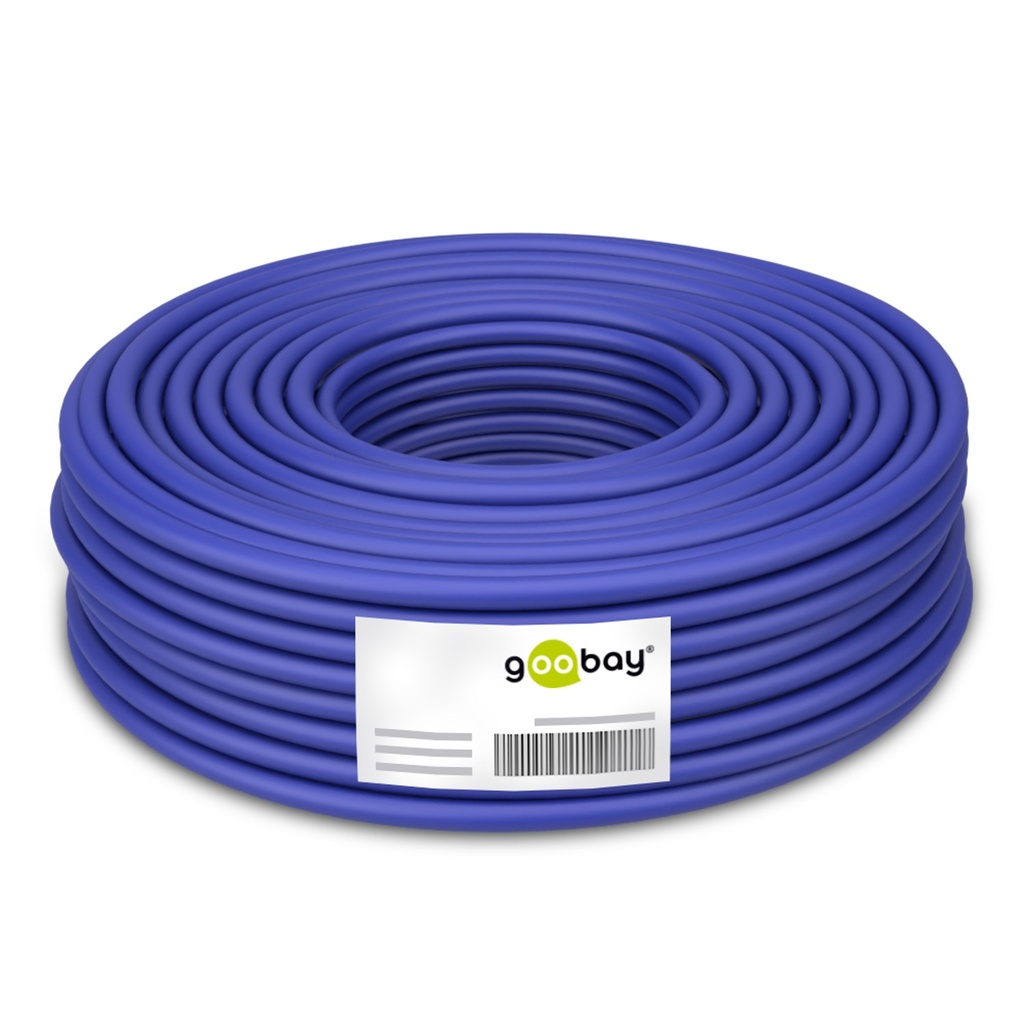

- Consumption Unit 1 pc. cable reel
- Outer sheath material LSZH
- Colorblue
