NPN 400V 12A 100W B:8-40 TO220AB
MJE13008 Transistor. Datasheet pdf. Equivalent
Type Designator: MJE13008
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 600 V
Maximum Collector-Emitter Voltage |Vce|: 300 V
Maximum Emitter-Base Voltage |Veb|: 9 V
Maximum Collector Current |Ic max|: 12 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 4 MHz
Collector Capacitance (Cc): 160 pF
Forward Current Transfer Ratio (hFE), MIN: 8
Noise Figure, dB: -

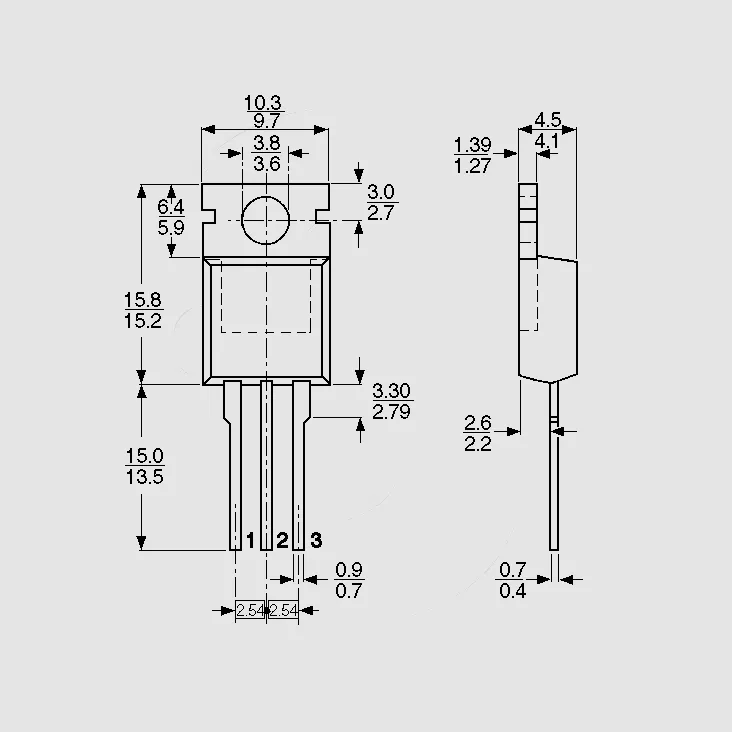

Package: TO220
