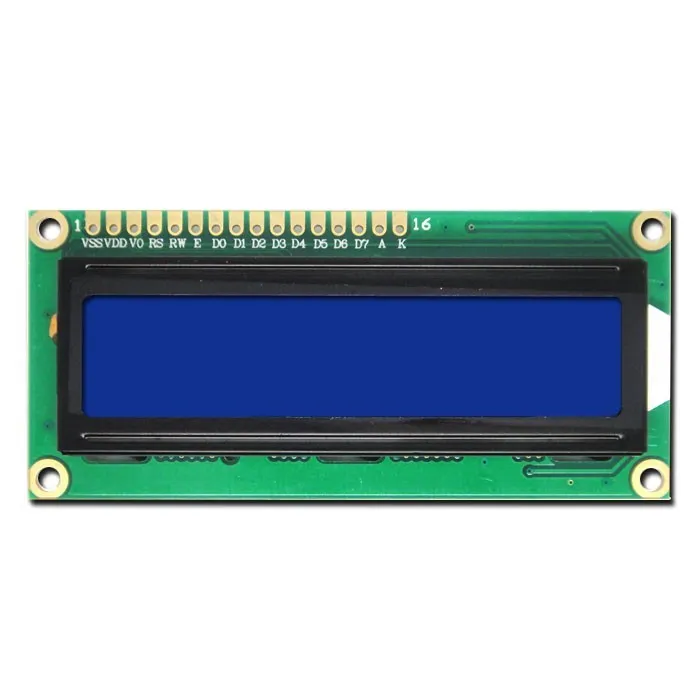

1602 Parallel LCD Module (blue backlight)
Features:
LCD display module with blue backlight.
Wide viewing angle and high contrast.
Can display 2-lines * 16-characters.
Small and light appearance, easy and convenient to use.
Specfications:
LCM type: Characters
Character type: 16 * 2
Screen size: 7.1 * 2.4cm
Character size: 3.55 * 5.95 mm
Driving voltage: 5V DC
Backlight: Blue
Working temperature: 0 - 50°C
|
Pinout |
|
|
LCD |
ARDUINO |
|
VSS |
GND |
|
VDD |
+5V |
|
VO |
+5V VIA POTENTIOMETER |
|
RS |
D12 |
|
RW |
GND |
|
E |
D11 |
|
D4 |
D5 |
|
D5 |
D4 |
|
D6 |
D3 |
|
D7 |
D2 |
|
A |
+5V |
|
K |
GND |
