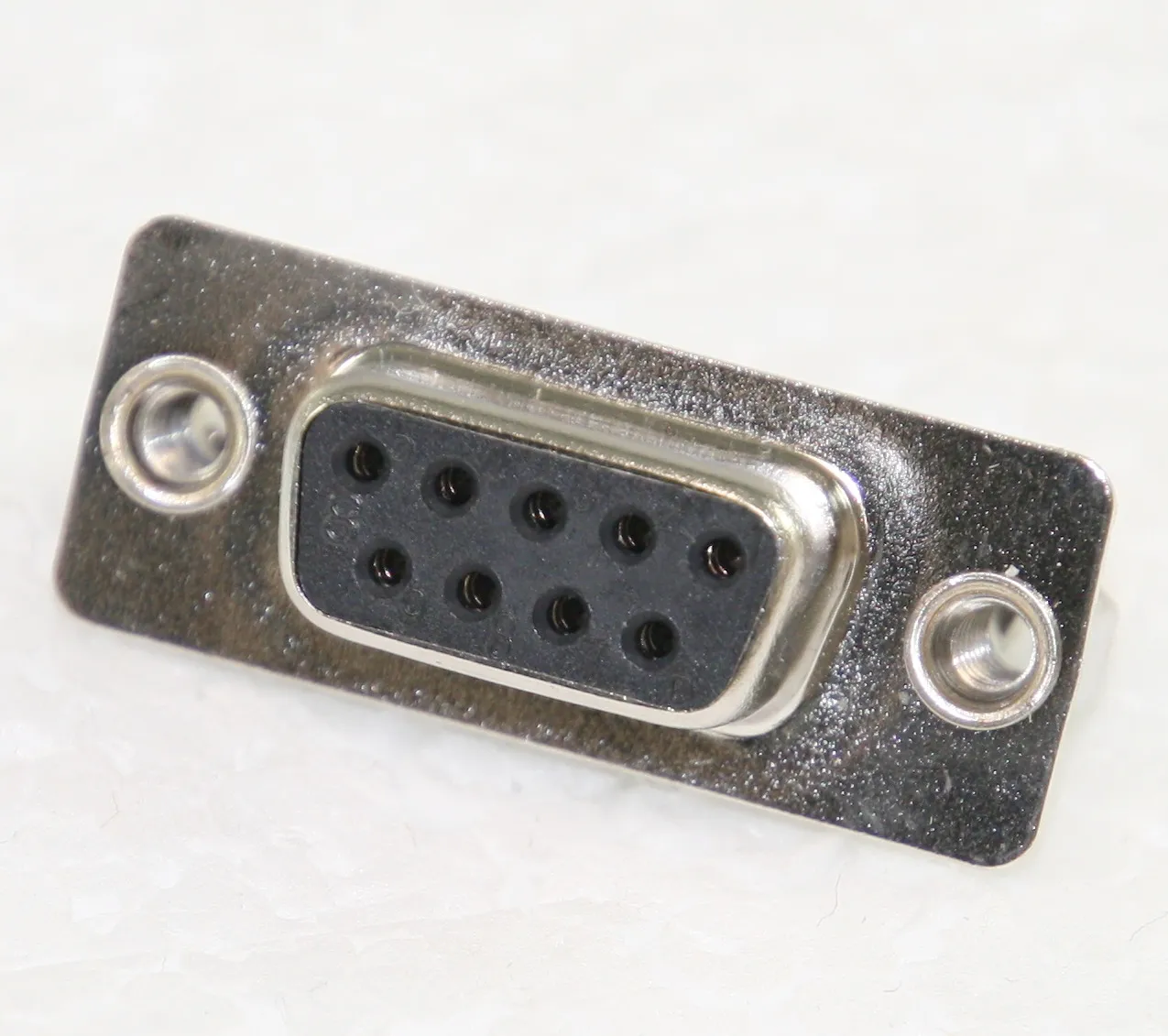

  8. D-Sub Socket 9-Pole PCB Straight bakke med 90 stk.

D-Sub Socket 9-Pole PCB Straight bakke med 90 stk.

Varenummer: 140-196
Varekode: 164A16569X
Vægt: 1000 g
49 stk. på lager
Vis lignende produkter i kategorien "9-POLET"
Specifikationer
Stik-familie D-Sub
Antal poler 9

Specifications

  • EU RoHS
    Compliant
  • Type
    D-Subminiature
  • Gender
    RCP
  • Number of Contacts
    9
  • Number of Terminals
    9
  • Number of Ports
    1
  • Number of Rows
    2
  • Termination Method
    Solder
  • Body Orientation
    Straight
  • Contact Gender
    SKT
  • Maximum Current Rating (A)
    7.5
  • Maximum Voltage Rating
    125V
  • Insulation Resistance (MOhm)
    5000
  • Maximum Contact Resistance (mOhm)
    10
  • Minimum Operating Temperature (°C)
    -55
  • Maximum Operating Temperature (°C)
    125
  • Mating Cycle (Cycles)
    50
  • Shell Material
    Steel
  • Shell Plating
    Tin
  • Shell Size
    E
  • Less Contact
    No
  • Product Length (mm)
    31.19
  • Product Depth (mm)
    12.93
  • Life Cycle
    Active
  • Contact Material
    Copper Alloy
  • Contact Plating
    Gold Over Nickel
Inkl. moms
Kr. 10,00
Produktfiler
