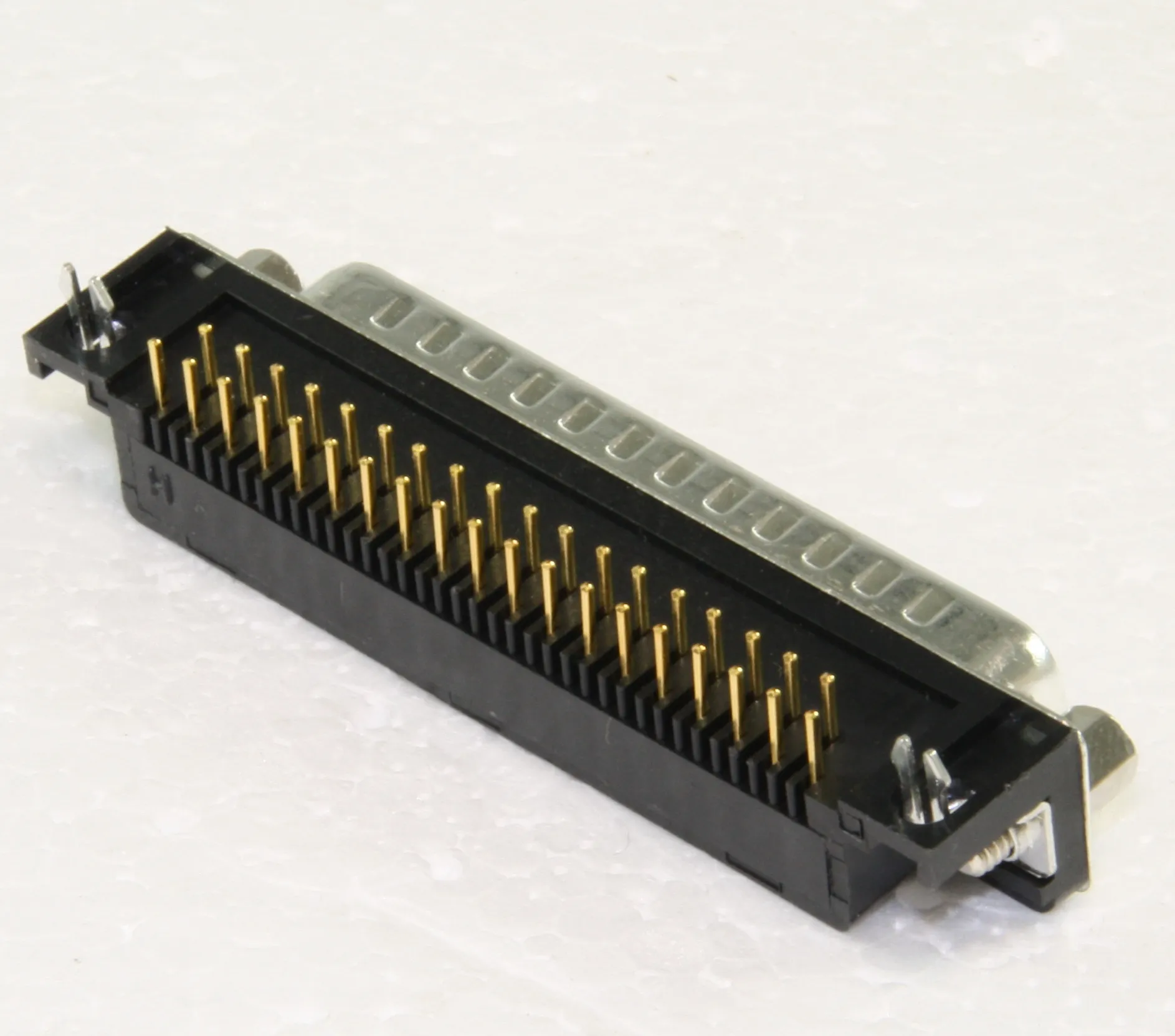

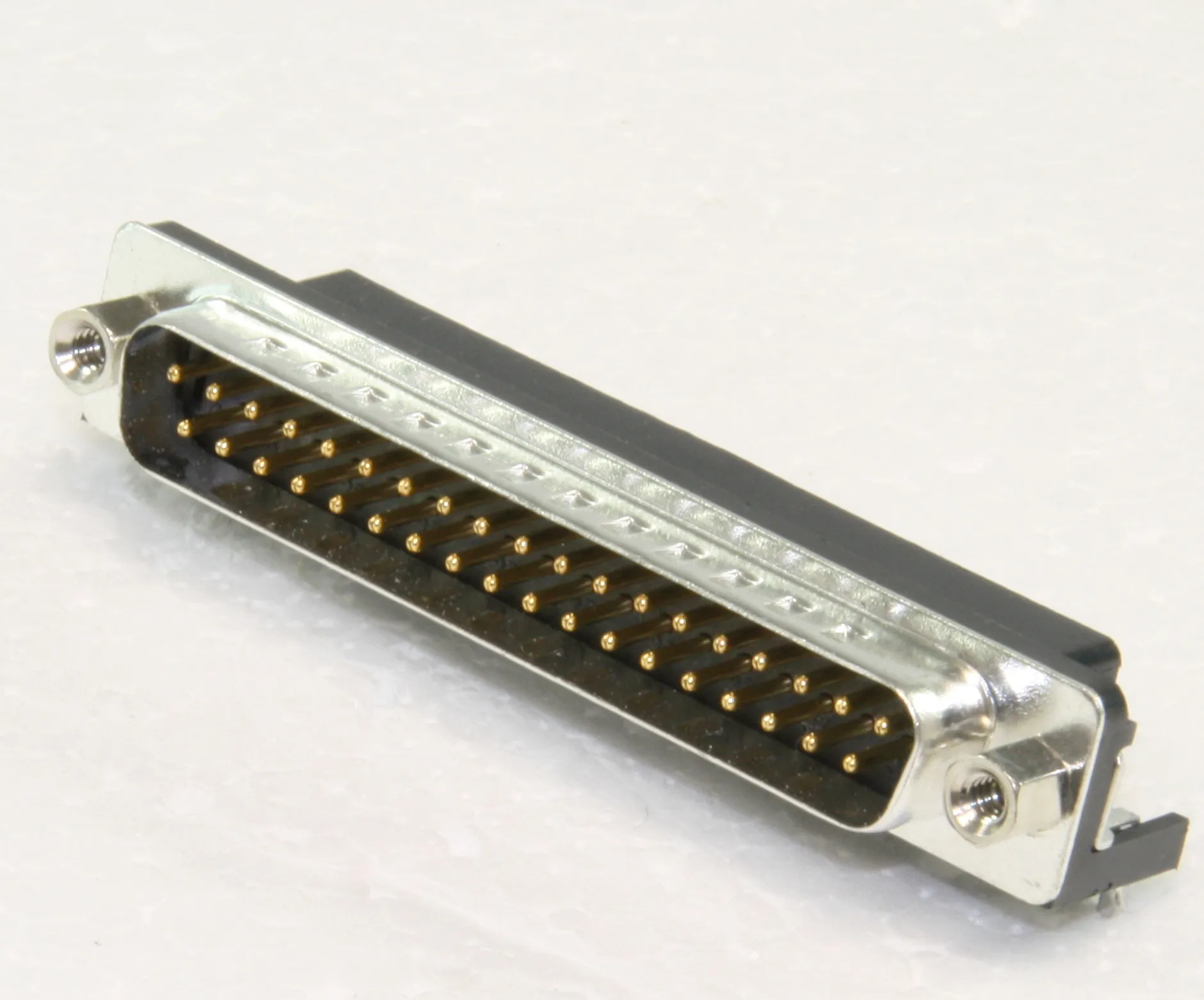

D-Sub-Plug 37-Pole Solder Pin 90¤ Vinkel
Varenummer:
140-072
Varekode: SL37WSI
107 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 14 stk. kan skaffes onsdag d. 11/11
Specifikationer
| Stik-familie | D-Sub |
|---|---|
| Antal poler | 37 |
Gruppe: F4616
GSN D-Sub Plugs
Series: SL_WSI
Snap-In, Angled
Footprint: 8,08mm
Contacts: Stamped
Technical Specifications
 |
|
| Insulating Shell: | PBT, UL94V-0 |
| Contacts: | Cu-Alloy |
| Contact Surface: | Selective Flash Gold |
| Housing Frame: | Steel, Tin-plated |
| Operating Current: | 5A |
| Dielectric Strength: | 1000V AC |
| Insulation Resistance, Min.: | 500MW |
| Contact Resistance, Max.: | 30mW |
| Temperature Range: | -40...+85°C |
|
|
| Dimensions |
| Part Nr. | A | B | C |
| [mm] | [mm] | [mm] | |
| SL09WSI | 30,81 | 24,99 | 16,92 |
| SL15WSI | 39,14 | 33,32 | 25,5 |
| SL25WSI | 53,04 | 47,04 | 38,96 |
Produktfiler
