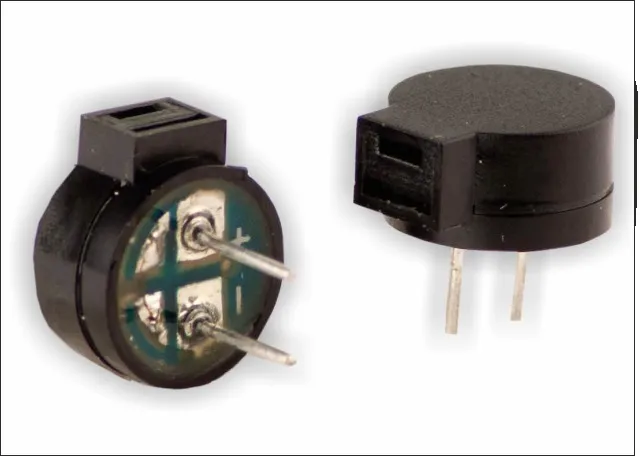

AC Sounder 9,6mm 5V 2731Hz 85dB PC
Varenummer:
139-878
Varekode: PB-09M27PE-05Q
Vægt: 0 g
13 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 1000 stk. kan skaffes mandag d. 9/11
Features
| • Extremely high-power miniature transmitter for PCB
assembly • Without drive circuit • Pin connection terminals • Easy to remove adhesive label with polarity data to protect against contamination during soldering |
 |
|
Technical Specifications |
| Part Nr. | FR | U | SPLmin | IA | TB |
| [kHz] | [Vpp] | [dB] | [mA] | [°C] | |
| PB0927P05Q | 2,731 | 4,5...5,5 | 85 | 65 | -20...+70 |
| PB1220PF1Q | 2,048 | 1,25...2,5 | 88 | 40 | -20...+60 |
| PB1220PE05Q | 2,048 | 4,5...5,5 | 85 | 60 | -20...+70 |
| PB1220PE12Q | 2,048 | 9,0...15 | 90 | 65 | -20...+70 |
| PB1224PE05Q | 2,4 | 4,5...5,5 | 85 | 60 | -20...+70 |
| PB1224PE12Q | 2,4 | 9,0...15 | 85 | 40 | -20...+70 |
| PB09M27PE05Q | 2,731 | 4,5...5,5 | 85 | 70 | -20...+70 |
| FR = Resonant Frequency, U = Operating Voltage, SPLmin = Min. S.P.L. at Vpp and 10cm Spacing, IA = Current Consumption, TB = Operating Temperature Range | |||||
|
|||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.hitpoint.com.tw |
Inkl. moms
Kr. 10,00
- v/10 – Kr. 8,75
- v/25 – Kr. 7,50
- v/100 – Kr. 6,25
AC Sounder 9,6mm 5V 2731Hz 85dB PC
139-878
/ PB-09M27PE-05Q
13 stk.
på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Ved bestilling nu, får vi dem hjem mandag d. 9/11
Features
| • Extremely high-power miniature transmitter for PCB
assembly • Without drive circuit • Pin connection terminals • Easy to remove adhesive label with polarity data to protect against contamination during soldering |
|
|
Technical Specifications |
| Part Nr. | FR | U | SPLmin | IA | TB |
| [kHz] | [Vpp] | [dB] | [mA] | [°C] | |
| PB0927P05Q | 2,731 | 4,5...5,5 | 85 | 65 | -20...+70 |
| PB1220PF1Q | 2,048 | 1,25...2,5 | 88 | 40 | -20...+60 |
| PB1220PE05Q | 2,048 | 4,5...5,5 | 85 | 60 | -20...+70 |
| PB1220PE12Q | 2,048 | 9,0...15 | 90 | 65 | -20...+70 |
| PB1224PE05Q | 2,4 | 4,5...5,5 | 85 | 60 | -20...+70 |
| PB1224PE12Q | 2,4 | 9,0...15 | 85 | 40 | -20...+70 |
| PB09M27PE05Q | 2,731 | 4,5...5,5 | 85 | 70 | -20...+70 |
| FR = Resonant Frequency, U = Operating Voltage, SPLmin = Min. S.P.L. at Vpp and 10cm Spacing, IA = Current Consumption, TB = Operating Temperature Range | |||||
|
|||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
|
| http://www.hitpoint.com.tw |
