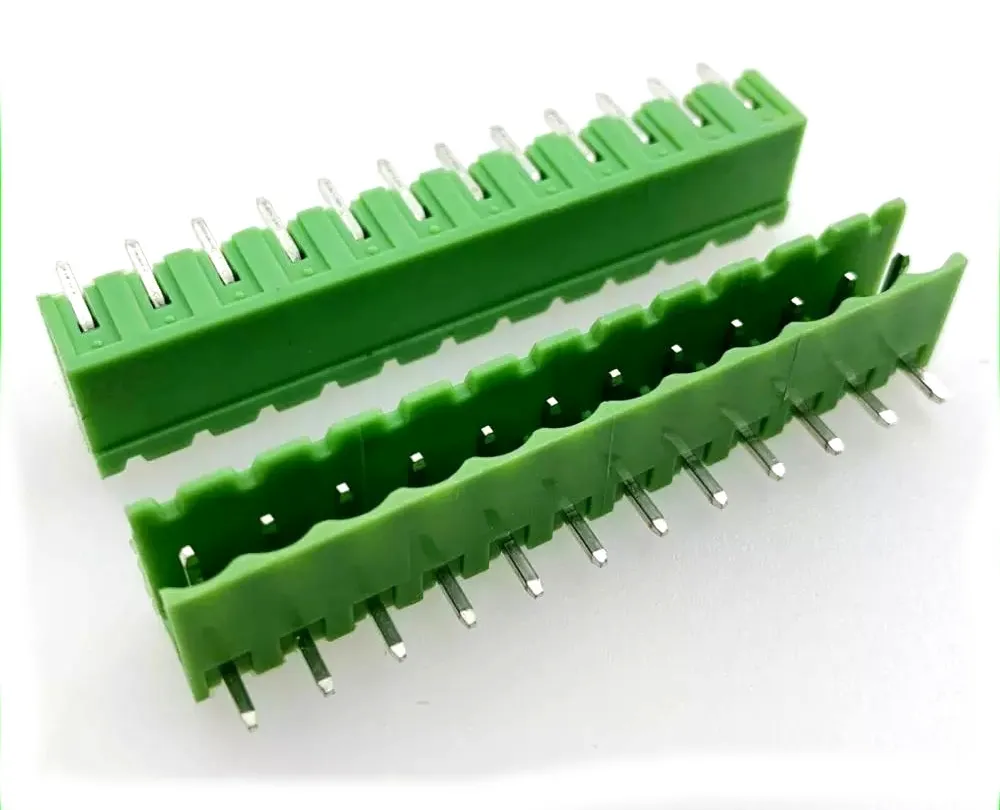

Box Header 5,0 Hor. 13-Pole Closed End
Varenummer:
139-691
Varekode: MSTBA2,5/13
60 stk.
på lager
Dimensions
| Length | 12 mm |
|---|---|
| Pitch | 5.08 mm |
| Dimension a | 60.96 mm |
| Width | 67.96 mm |
| Constructional height | 8.6 mm |
| Height | 12.1 mm |
| Length of the solder pin | 3.5 mm |
| Pin dimensions | 1 x 1 mm |
| Hole diameter | 1.4 mm |
General
| Range of articles | MSTBA 2,5/..-G |
|---|---|
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A |
| Maximum load current | 12 A |
| Insulating material | PBT |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of positions | 13 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| CSA | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Inkl. moms
Kr. 32,50
- v/10 – Kr. 24,38
