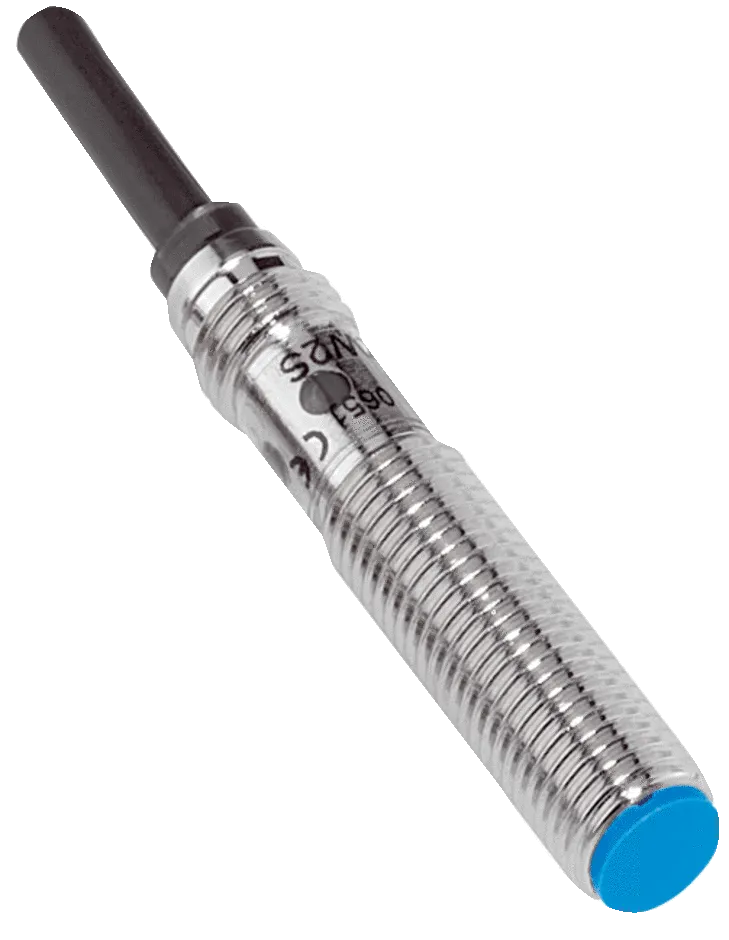

Induktiv sensor. PNP-udgang. Med 2m ledning.

Varenummer: 139-639
Varekode: IME08-02BPSZW2K
Vægt: 70 g
100 stk. på lager
Bestil inden kl. 14 i dag for afsendelse i dag
Yderligere 15 stk. kan skaffes fredag d. 30/10
Vis lignende produkter i kategorien "Induktive Følere"
  • Features
    Housing Cylindrical thread designshort-body
    Thread size M8 x 1
    Diameter Ø 8 mm
    Sensing range Sn 2 mm
    Safe sensing range Sa 1.62 mm
    Installation type Flush
    Switching frequency 4,000 Hz
    Connection type Cable, 3-wire, 2 m
    Output type PNP
    Output function NO
    Electrical wiring DC 3-wire
    Enclosure rating IP 67 1)
    • 1) According to EN 60529.
  • Mechanics/electronics
    Supply voltage 10 V DC ... 30 V DC
    Ripple ≤ 10 %
    Voltage drop ≤ 2 V 1)
    Current consumption ≤ 10 mA 2)
    Time delay before availability ≤ 100 ms
    Hysteresis 5 % ... 15 %
    Repeatability ≤ 2 % 3) 4)
    Temperature drift (of Sr) ± 10 %
    EMC According to EN 60947-5-2
    Continuous current Ia ≤ 200 mA
    Cable material PVC
    Short-circuit protection ✔
    Reverse polarity protection ✔
    Power-up pulse protection ✔
    Shock and vibration resistance 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm
    Ambient operating temperature –25 °C ... +75 °C
    Housing material Metal, Nickel-plated brass
    Sensing face material Plastic, Plastic
    Housing length 43 mm
    Thread length 25 mm
    Tightening torque, max. Typ. 5 Nm
    UL File No. NRKH.E181493
    • 1) At Ia max.
    • 2) Without load.
    • 3) Ub and Ta constant.
    • 4) Of Sr.
  • Reduction factors
    Note The values are reference values which may vary
    St37 steel (Fe) 1
    Stainless steel (V2A, 304) Approx. 0.8
    Aluminum (Al) Approx. 0.45
    Copper (Cu) Approx. 0.4
    Brass (Br) Approx. 0.4
  • Installation note
    Remark Associated graphic see "Installation"
    B 16 mm
    C 8 mm
    D 6 mm
    F 16 mm
  • Classifications
    ECl@ss 5.0 27270101
    ECl@ss 5.1.4 27270101
    ECl@ss 6.0 27270101
    ECl@ss 6.2 27270101
    ECl@ss 7.0 27270101
    ECl@ss 8.0 27270101
    ECl@ss 8.1 27270101
    ECl@ss 9.0 27270101
    ETIM 5.0 EC002714
    ETIM 6.0 EC002714
    UNSPSC 16.0901 39122230
Inkl. moms
Kr. 198,75
Kr. 399,00
  • v/4 – Kr. 179,00
  • v/10 – Kr. 149,00
